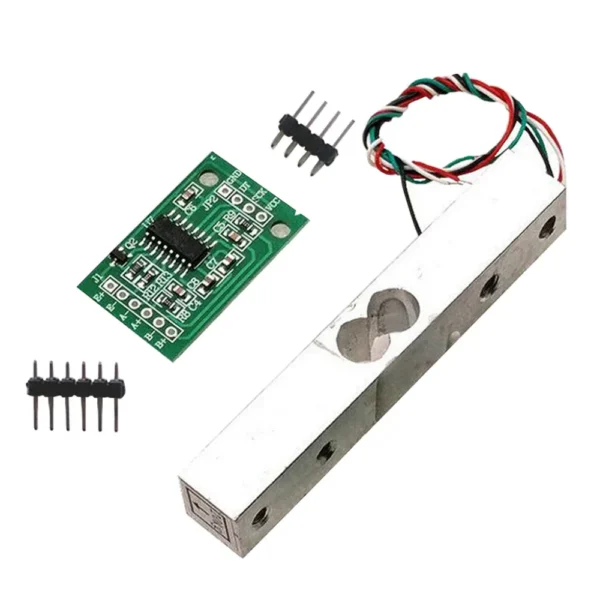

1kg Load Cell Weight Sensor with HX711 ADC Converter

-7%

1kg Load Cell Weight Sensor with HX711 ADC Converter

Original price was: ₹149.00.Current price is: ₹139.00.

Technical Details

Aluminium alloy with pre-attached strain gauges
Measures force up to 1kg
Input: Red+, Black- | Output: Green+, White-
Excitation voltage: 5-10V DC
Low-noise PGA with 32, 64, 128 gain options
Pin-driven controls, no programming needed
10SPS or 80SPS selectable data rate
Bracket (Tray) Diameter: 10cm
Operating voltage: 3.3V–5V (recommended 5V)
Appearance height: 3.5cm (including pillar)
HX711 24-bit high-precision ADC module
Post-calibration accuracy: Within 1g
Operating current: <1.5mA

Features

Two selectable differential input channels
Low-noise PGA with gain options: 32, 64, 128
Built-in regulator for load-cell & ADC power
On-chip oscillator, optional external crystal
Pin-driven controls, no programming required
Selectable data rate: 10SPS / 80SPS
50Hz & 60Hz noise rejection
Low power consumption: 1.5mA (active), 1uA (power-down)
Operating voltage: 3.3V – 5V
Operating temperature: -20°C to +85°C
HX711 mounted on breakout board with headers

Applications :

Electronic weighing scales
DIY weight measurement projects
Industrial automation
Smart home weight monitoring
Arduino & Raspberry Pi projects
Kitchen and postal scales
Healthcare and fitness devices

Physical Attributes

L x W x H (mm): 23.4 x 15.2 x 2.2
Weight (gm): 33

Package Includes

1 x 1kg Load Cell Weight Sensor with HX711 ADC Converter

10 in stock

Category: SENSOR

Description

Specification

Description

1kg Load Cell Weight Sensor with HX711 ADC Converter

The 1KG small range weighing pressure sensor combined with the HX711AD weighing module offers a highly accurate and easy-to-use solution for a wide range of weighing applications. Whether for industrial, consumer, or educational projects, this combination provides reliable performance and easy integration with digital systems.

Additional information

Weight	33 g
Dimensions	23.4 × 15.2 × 2.2 mm
