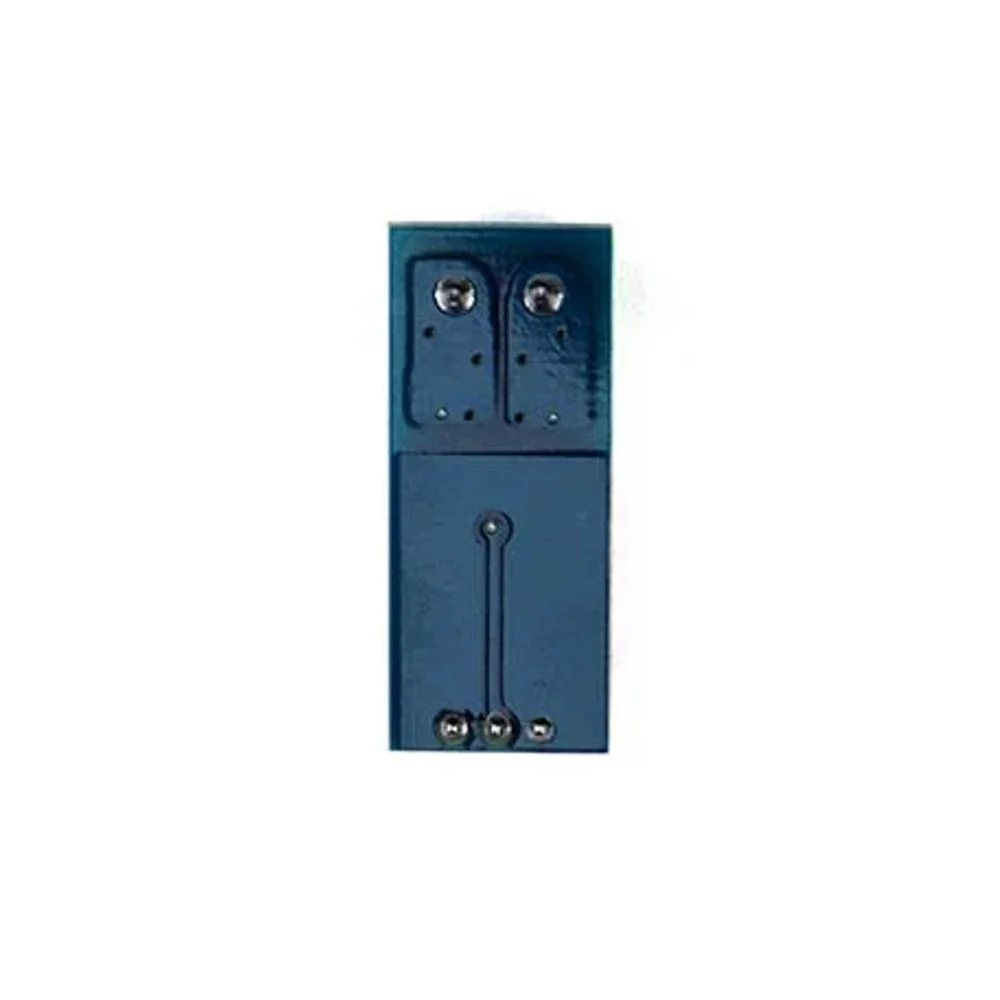

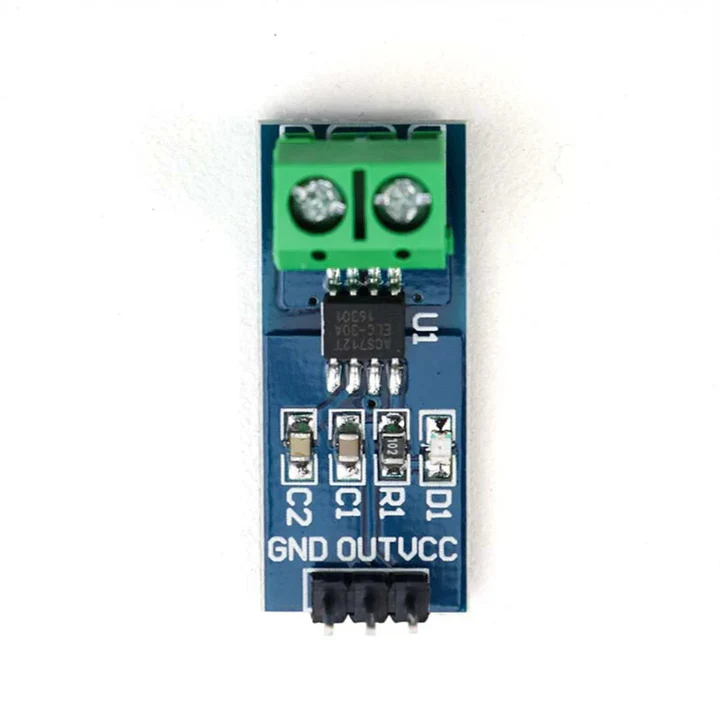

30A range Current Sensor Module ACS712

Original price was: ₹119.00.Current price is: ₹72.00.

Technical Details

Item Type: Current Sensor
Sensitivity (mV/A): 100
Length (mm): 27
Width (mm): 12
Height (mm): 13.5
Weight (g): 5

Features

Low-noise analog signal path
Device bandwidth is set via the new FILTER pin
5 µs output rise time in response to step input current
Small footprint, low-profile SOIC8 package
2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
5.0 V, single supply operation
66 to 185 mV/A output sensitivity
Output voltage proportional to AC or DC currents
Factory-trimmed for accuracy
Extremely stable output offset voltage
Nearly zero magnetic hysteresis
The ratiometric output from the supply voltage

Applications :

Overcurrent Protection: Used in circuit protection to detect excessive current flow.
Motor Control: Measures current in motors to monitor performance and prevent damage.
Power Supply Monitoring: Tracks current consumption in power supply systems.
Battery Management Systems (BMS): Monitors current in battery charging and discharging.
Home Automation: Measures appliance power usage for smart energy management.
Renewable Energy Systems: Tracks current flow in solar panels and wind turbines.
Inverters: Monitors current flow in AC/DC inverters for efficiency and protection.
Industrial Automation: Ensures proper current flow in automated systems.

10 in stock

Category: SENSOR

Description

Specification

Description

30A range Current Sensor Module ACS712

The 30A range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.

Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.

This ACS721 current module is based on the ACS712 sensor, which can accurately detect AC or DC current.

The maximum AC or DC that can be detected can reach 30A, and the present current signal can be read via analog I / O port of Arduino.

Note: The color of the product may vary. while shipping you may get any one of them.

Additional information

Weight	5 g
Dimensions	27 × 12 × 13.5 mm
