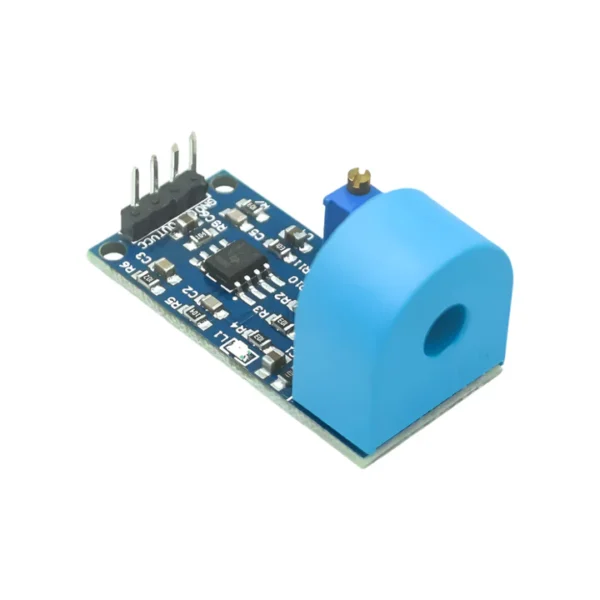

5A Range Single Phase AC Active Output Current Transformer Module Current Sensor

-34%

5A Range Single Phase AC Active Output Current Transformer Module Current Sensor

Original price was: ₹149.00.Current price is: ₹99.00.

Technical Details

Current Ratio: 5A:5mA
Rated Primary Current: 5A (50/60Hz)
Winding D.C. Resistance: 155Ω (at 20°C)
Max Primary Current: 20A (50/60Hz)
Turns Ratio: 1000:1 (Np:Ns)
Isolation Voltage: 4500V
Onboard sampling resistor
Operating Temperature: -40 to 85°C
Secondary Coil Pin Length: >3mm
Epoxy Encapsulation

Features

Onboard precision micro current transformer
Measures AC currents ≤5A
Analog output: 5A/5mA

Applications :

Power Monitoring: Measures AC in home and industrial energy monitoring systems.
Smart Metering: Used in IoT-based energy management solutions.
Overload Protection: Helps detect overcurrent conditions in electrical circuits.
Industrial Automation: Monitors current flow in motors, pumps, and machinery.
Home Automation: Integrates with smart devices for real-time power usage tracking.

Pin Configuration

Ground (G)
Ground (G)
Signal Out
VCC (+5V)

Physical Attributes

Dimensions (mm) : 38.2 x 18.9
Weight (gm): 11

Package Includes

1 x 5A Range Single Phase AC Active Output Current Transformer Module Current Sensor

10 in stock

Category: SENSOR

Description

Specification

Description

5A Range Single Phase AC Active Output Current Transformer Module Current Sensor

5A Single Phase AC Current Transformer Sensor Module can measure within 5A current communication, corresponding to output analog quantity that can be adjusted. It measures AC currents less than 5A, the corresponding analog output is 5A/5mA.

Additional information

Weight	11 g
Dimensions	38.2 × 18.9 mm
