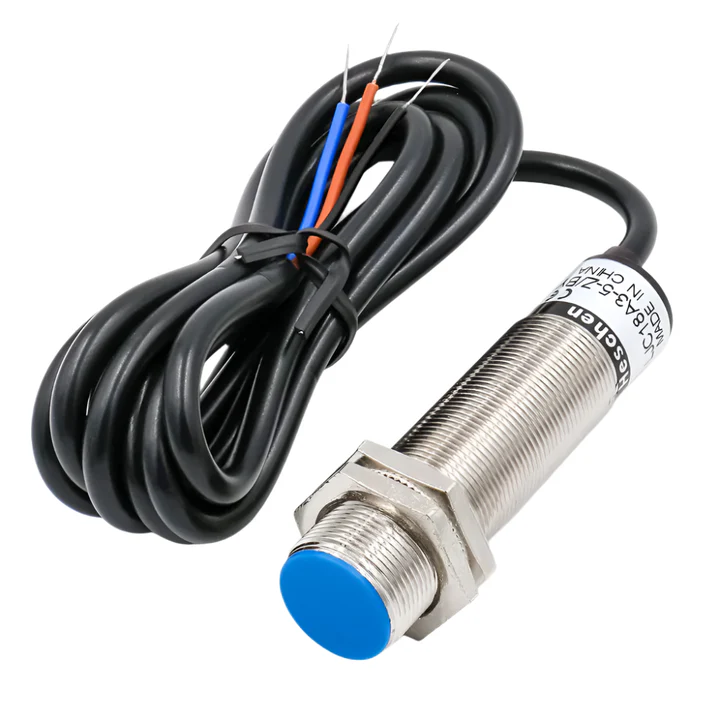

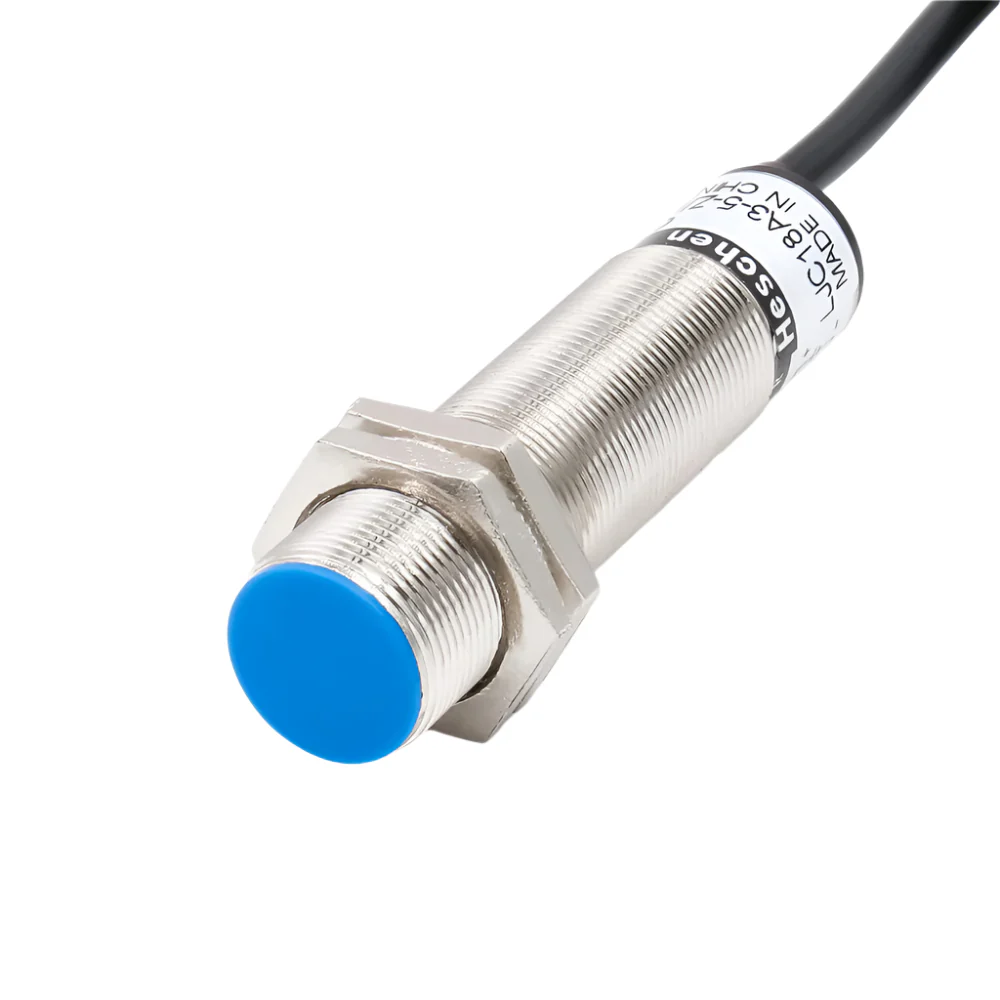

8mm NPN Inductive Proximity Sensor M18 DC6~36V

-18%

8mm NPN Inductive Proximity Sensor M18 DC6~36V

Original price was: ₹399.00.Current price is: ₹329.00.

Technical Details

6-36V DC
8mm Detection
M18 Thread
Model: RM18~3008 NA
Inductive, NPN NO
Non-Flush (Unshielded)
200mA Max
0-5.6mm Setting
50MΩ Insulation
-30 to 80°C
Ø5, 3-Wire, 2m Cable
75g Weight

Feature

IP67 protection (IEC standard)
Compact design
High precision positioning
Diverse exterior options
Strong anti-interference
Multiple output types
High switching frequency
Wide voltage compatibility
Dust, vibration, water & oil resistant
Short-circuit & reverse connection protection
Long lifespan

Applications :

Industrial Automation: Detects metal objects in conveyor systems, assembly lines, and automated machinery.
Precision Metal Detection: Ideal for sensing small ferrous and non-ferrous metal objects in manufacturing processes.
Robotics: Enables accurate positioning and motion control in robotic arms and automated systems.
CNC Machines: Identifies metal tools and workpieces in milling, lathe, and grinding machines.
Automotive Manufacturing: Used in vehicle assembly lines for detecting parts and ensuring correct alignment.
Security & Access Control: Integrated into automated gates, doors, and security systems for non-contact sensing.
Smart Warehousing: Assists in inventory management by detecting metallic storage bins and automated equipment.
Medical & Laboratory Equipment: Utilized in specialized applications for detecting metal components in precision instruments.

Physical Attributes

Cable Diamensions : Ø5, 3-Wire, 2 Meter
Weight (gm) : 75

Package Includes

1 x 8mm NPN Inductive Proximity Sensor M18 DC6~36V (Unshielded) (Normally Open)

10 in stock

Category: SENSOR

Description

Specification

Description

8mm NPN Inductive Proximity Sensor M18 DC6~36V (Unshielded) (Normally Open)

8mm NPN Inductive Proximity Sensor RM18 DC6~36V (Unshielded) is a brand new inductive proximity sensor that detects a metal object. Non-flush, or unshielded sensors, do not have the shield around the end of the sensor so the field can radiate from the face to the sides of the sensor in a larger pattern.

This M18 indicates a cylinder type whose diameter is 18mm. The operating voltage range is VDC 6~36V, but the nominal voltage is 30V with detecting distance of 8mm. The sensor has 3 wire and NO (Normally open) type output with RED LED indicator.

The Inductive Proximity Sensor application:

Mine metallurgy.

Plastics, textile and Chemical Industry.

Light industry, tobacco, electric power, railway, and war industry.

Additional information

Weight	75 g
Dimensions	2 mm
