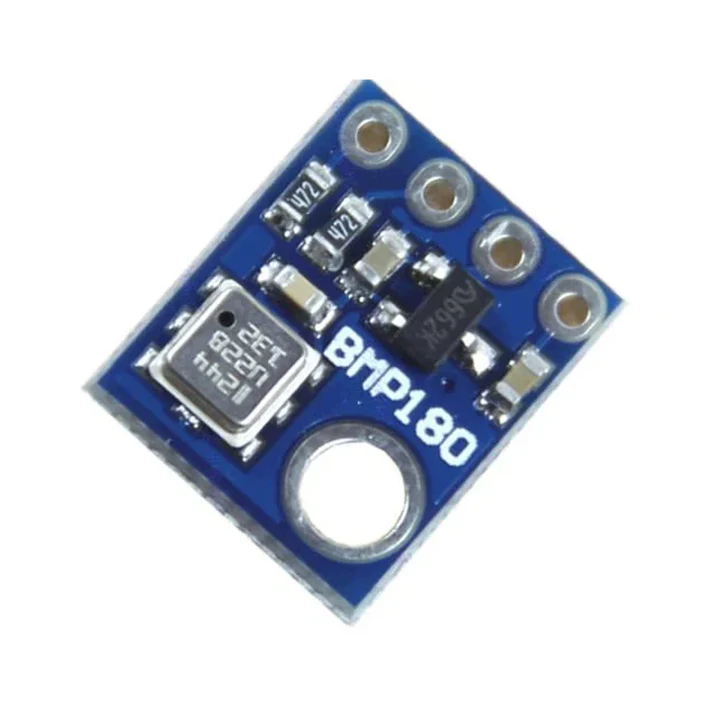

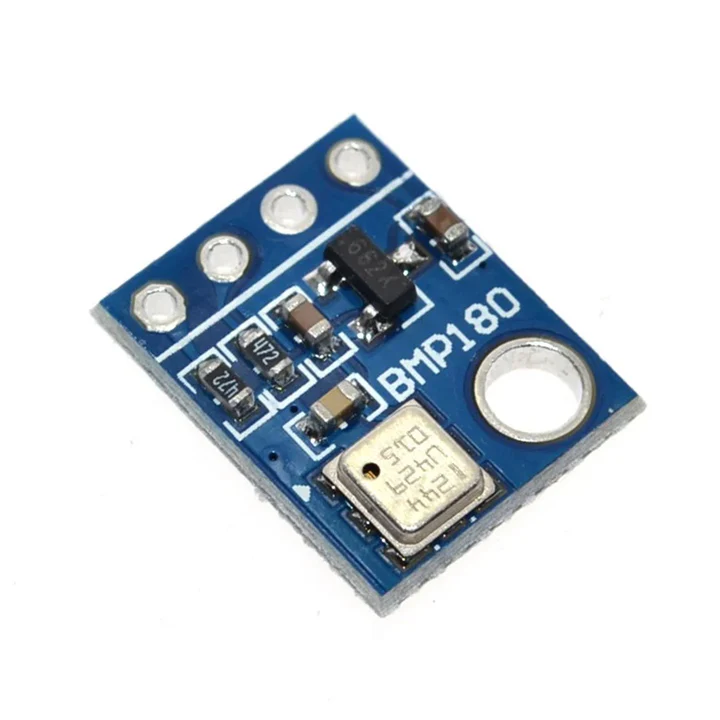

BMP180 Digital Barometric Sensor Module

Original price was: ₹49.00.Current price is: ₹38.00.

Technical Details

Operating Voltage (VDC) : 1.8 to 3.6
Power Consumption (W): 0.5uA at 1Hz
Interface Type : I2C
Pressure Range : 300hPa to 1100hPa (+9000m to -500m)
PCB Size ( L x W ) mm:13 x 12

Features

1.8V to 3.6V Supply Voltage
I2C interface
Fully calibrated
Very low noise – up to 0.02hPa (17cm)
Small and easy to use.

BMP180 Pin Configuration

VCC: Power Supply (3.3V to 5V)
GND: Ground Pin
SCL: Serial Clock Pin (I2C)
SDA: Serial Data Pin (I2C)

Applications :

Weather Monitoring: Measures atmospheric pressure for weather forecasting.
Altitude Measurement: Ideal for altimeters in drones, smartphones, and outdoor devices.
Indoor Navigation: Helps in precise floor-level detection in smart devices.
Environmental Sensing: Used in IoT systems for pressure and temperature data.
Health Monitoring: Integrated into wearables for monitoring altitude during fitness activities.
Aviation: Used in small aircraft for altitude tracking and cabin pressure monitoring.
Research and Education: Popular in labs for atmospheric pressure experiments.

10 in stock

Categories: SENSOR, T-SHIRT

Description

Specification

Description

BMP180 Digital Barometric Sensor Module

BMP180 Digital Barometric Sensor Module compatible with Arduino will Measure the absolute pressure of the environment using a digital barometer such as this has some interesting applications.

By converting the pressure measured into altitude, you have a reliable sensor for determining the height of your robot, plane or projectile! Using a sensor as capable as the BMP180 you can achieve an accuracy of 1m, with the noise of only 17cm in ultra-high resolution noise.

The device will operate at the only 0.3uA meaning low current draw for battery-powered applications. The BMP180 comes fully calibrated and ready to use. As the device operates over I2C we’ve added optional I2C pull-ups that can be enabled using the PU (pull up) jumper on the board for your convenience and ease during breadboarding.

Using I2C, the device provides pressure and temperature as 16bit values, which are used along with calibration data within the device are used to provide a temperature compensated altitude calculation.

Note : HW-596 on board working remains same.

Additional information

Dimensions	13 × 12 mm
