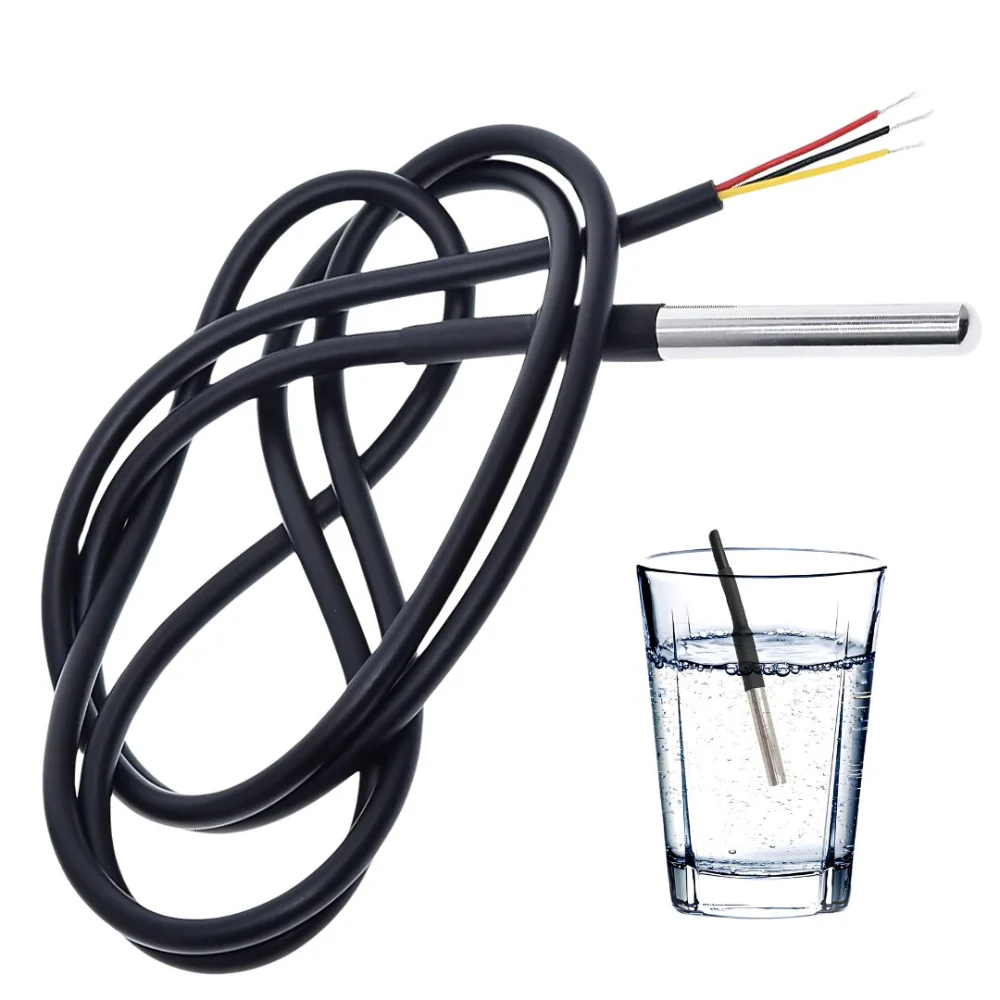

DS18B20 Waterproof Digital Temperature Sensor Thermal Probe Sensor (1m)

-14%

DS18B20 Waterproof Digital Temperature Sensor Thermal Probe Sensor (1m)

Original price was: ₹69.00.Current price is: ₹59.00.

Technical Details

Model: DS18B20
Item Type: Probe
Model Type: Waterproof Temperature Probe
Rated Voltage: 3V to 5.5V
Temperature Range: -55°C to +125°C
Probe Diameter: 6mm
Probe Length: 50mm
Resolution: 9 ~ 12 bit
Query Time: 750ms
Cable Length: 1m

Features

Heat-Shrinkable Tube on Each Pin to Prevent Short Circuits
Internal Sealing Glue for Waterproof and Moisture-Proof Protection
Stainless Steel Tube Encapsulation for Rust Prevention
Probe Dimensions: 6mm Diameter, 30mm Length
Equipped with Original DS18B20 Temperature Sensor Chip
Stainless Steel Shell (6 x 45mm), Lead Length 100cm (Shielding Wire)
No External Components Required, Unique Single Bus

10 in stock

Category: SENSOR

Description

Specification

Description

DS18B20 Waterproof Digital Temperature Sensor

The DS18B20 Waterproof Temperature Sensor Probe is based on the DS18B20 sensor, making it ideal for measuring temperatures in remote or wet conditions. Its digital design ensures no signal degradation over long distances.

These 1-Wire digital temperature sensors offer good accuracy (±0.5°C over a wide range) and provide up to 12 bits of resolution from the onboard digital-to-analog converter.

They work well with any microcontroller using a single digital pin, and you can connect multiple sensors to the same pin, as each one has a unique 64-bit ID programmed at the factory for easy identification. Compatible with 3.0-5.0V systems, the sensor requires a 4.7k resistor as a pull-up from the DATA pin to the VCC line when used with a microcontroller.

Additional information

Weight	21 g
Dimensions	100 mm
