ESP32 Adapter Breakout Board – Perfect for Prototyping & Development

ESP32 Adapter Breakout Board – Perfect for Prototyping & Development

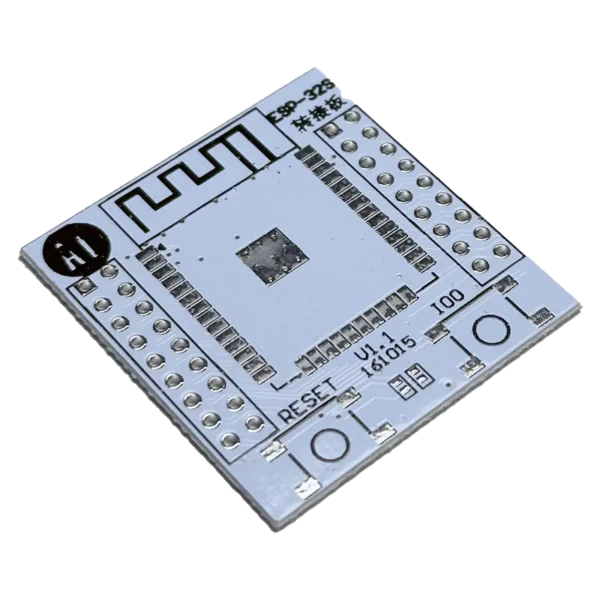

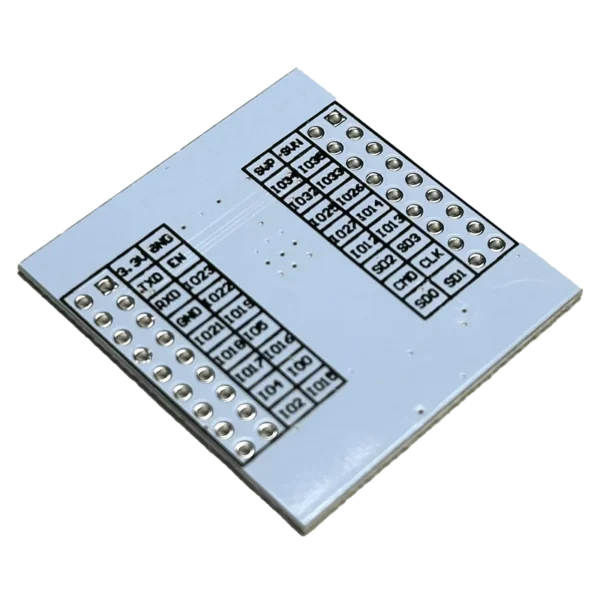

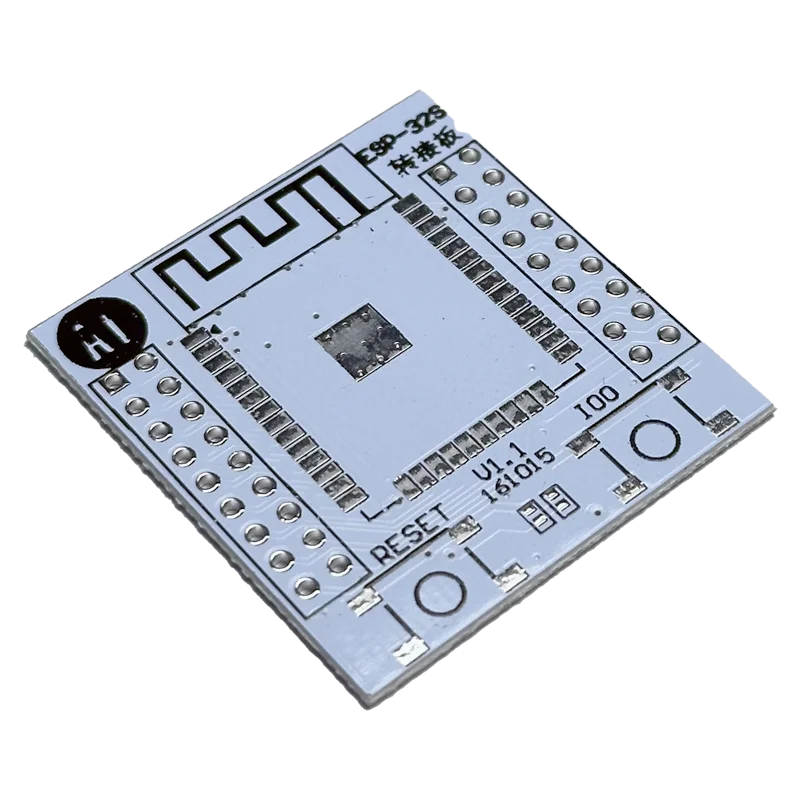

This adapter breakout board is designed for ESP-32F, ESP32, and ESP-WROOM-32 wireless Bluetooth modules, making it an essential tool for smooth prototyping and debugging. With a 2.54mm pin pitch, it fits seamlessly into a breadboard, allowing easy connections with Dupont jumper wires for hassle-free development.

Simplified Connectivity & Debugging

The board is designed for effortless integration with an ESP-32F module. It requires just four connections to a USB-to-serial adapter, with TXD and RXD lines properly assigned for stable data transmission. To ensure optimal performance, a 12K pull-up resistor (between 4.7K and 20K) is recommended on the EN pin to 3.3V.

Easy Flashing & Reset

• Built-in Reset & Flash Buttons – No need for external buttons, making firmware updates simple.
• Download Mode Support – Just press IO0 to enter download mode and reset before flashing.

What’s Included?

✔ 1 x ESP32 Adapter Breakout Board

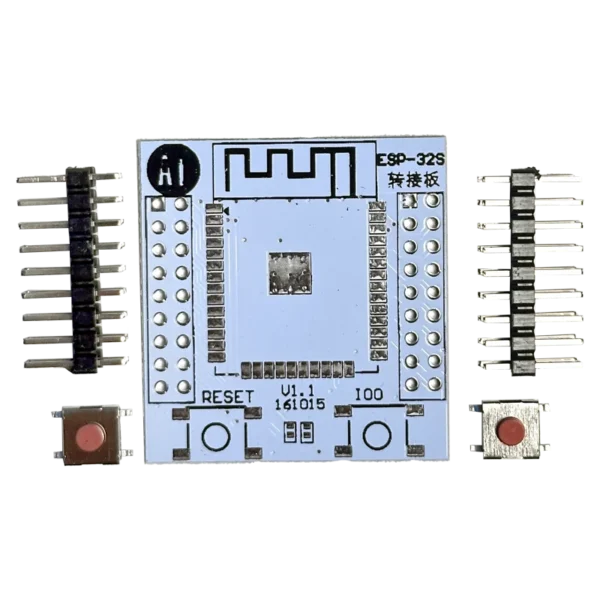

✔ 1 x Set of Berg Connectors & Switches (as shown in the image)

📌 Note: The ESP32 module is not included in this package.

This adapter board is an excellent addition to your ESP32 development toolkit, ensuring a seamless and efficient workflow.
