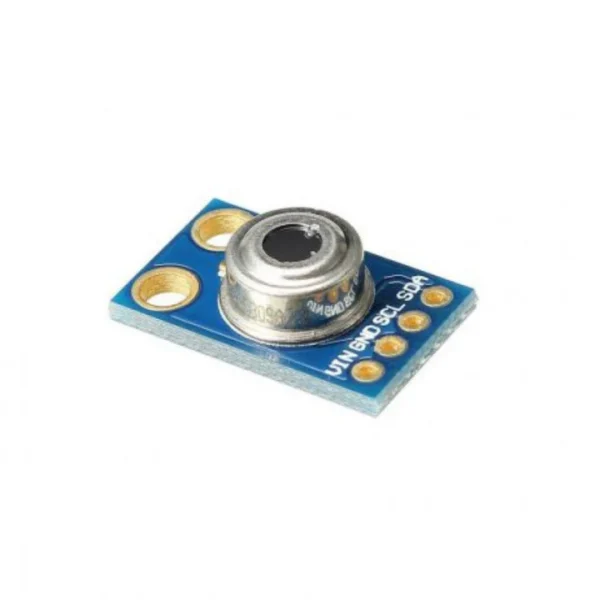

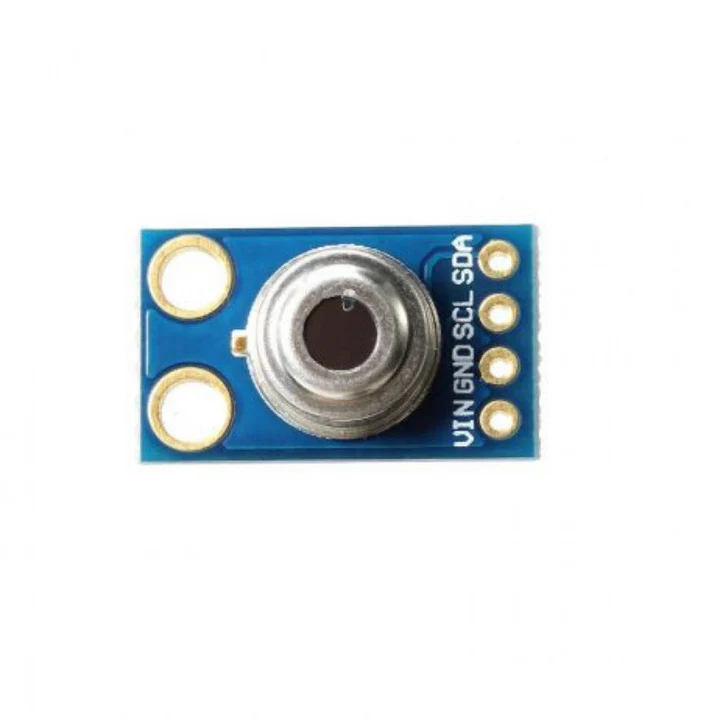

GY-906 MLX90614ESF DAA Non-Contact Human Body Infrared Temperature Measurement Range 2cm

-34%

GY-906 MLX90614ESF DAA Non-Contact Human Body Infrared Temperature Measurement Range 2cm

Original price was: ₹1,199.00.Current price is: ₹789.00.

Technical Details

Item Type: Sensor
Model Type: Temperature Sensor
Model No.: MLX90614
Operating Voltage: 3V to 5V
Operating Current: 2mA
Communication Protocol: I2C
Sensing Temperature: -40°C to +125°C, -70°C to +380°C
PCB Dimensions: 17 x 11mm
Weight: 1g

Features

Works from 3.3V to 5V, with built-in power regulator IC
Standard I2C interface with 2x pull-up resistors
Measurement distance: 1 cm
Small, low-cost, and easy to integrate
Calibrated for -40°C to +125°C sensor, -70°C to +380°C object temperature
Accuracy: 0.5°C (0..+50°C), 0.1°C for medical range (available on request)
Resolution: 0.01°C
SMBus compatible for fast readings and sensor networks
Customizable PWM output for continuous readings
Adaptable for 8-16V applications

Applications :

High precision non-contact temperature measurements
Thermal comfort sensor for mobile air conditioning control
Temperature sensing for HVAC systems
Automotive blind angle detection
Industrial temperature control for moving parts
Temperature control in printers and copiers
Home appliances with temperature control
Healthcare and livestock monitoring
Movement detection
Multiple zone temperature control (up to 127 sensors)
Thermal relay/alert
Body temperature measurement

Physical Attributes
- Length × Width × Height(mm) : 17 × 11 × 7
- Weight (gm) : 1
Package Includes
- 1 x GY-906 MLX90614ESF DAA Non-Contact Human Body Infrared Temperature Measurement Range 2cm

10 in stock

Category: SENSOR

Description

Specification

Description

GY-906 MLX90614ESF DAA Non-Contact Human Body Infrared Temperature Measurement Range 2cm

If You are wandering to Build a Device That is used to measure the temperature of a hot object like machines, flames, hot irons, or device CPU. Then this MLX90614 ESF Non-Contact Human Body Infrared Temperature Measurement Module is Needed for You. you can buy this Sensor on KitsGuru.com at a reasonable price

The MLX90614 ESF is an Infrared thermometer for non-contact temperature measurements. Both the IR-sensitive thermopile detector chip and the signal conditioning ASIC are integrated into the same TO-39 can. The Integrated MLX90614 GY-906 is a low noise amplifier, 17-bit ADC, and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.

The user can configure the digital output to be PWM. As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in the range of -20 to 120 °C, with an output resolution of 0.14 °C.

Additional information

Weight	1 g
Dimensions	17 × 11 × 7 mm
