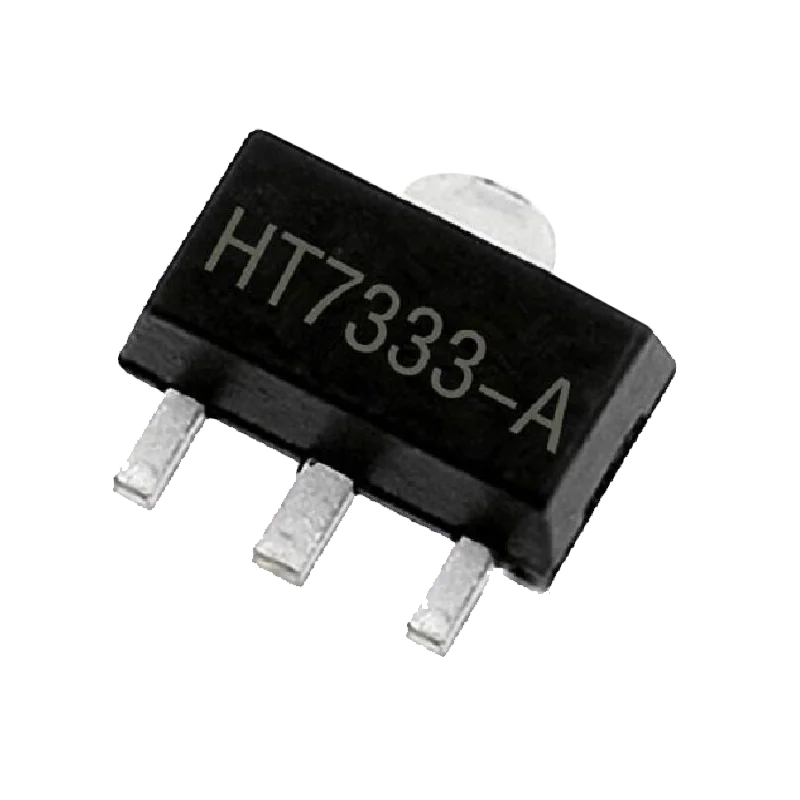

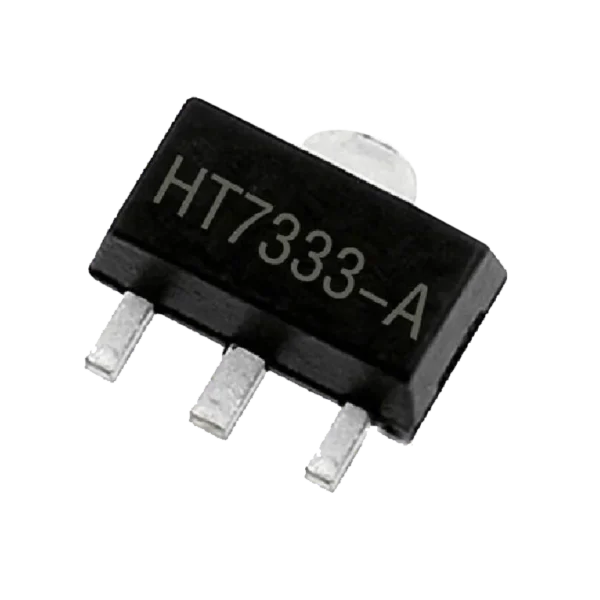

HT7333A 3.3V 250mA Low Dropout Voltage – SOT-89 Package

About HT7333

The HT7333 is a high efficiency 3.3v linear voltage regulator. it provides a regulated voltage of 3.3v with very low lossese because of its  low auiescent current and low dropout voltage.Quiescent current is the current that gets leaked out througn our regulator even when no load is connected this current is onlv or 8uA for HT7333

Dropout voltage is the voltage difference between the Input voltage and output voltage, which is also very less for a HT733 IC.. Both these characteristics helps us to extract all thejuice from a 3.7V Lithium coin cell like RJD2450, hence these IC’s are widely used along with it

• Rohs Compliant
• Output Voltage: 3.3V
• Output Current: 250 mA

Application :

• Portable batter powered applications
• 3.3V digital circuit.
• Reference voltage circuits
• Audio Video Sampling circuits

Package includes:

1 X HT7333  high efficiency 3.3v liner  voltage regulator
