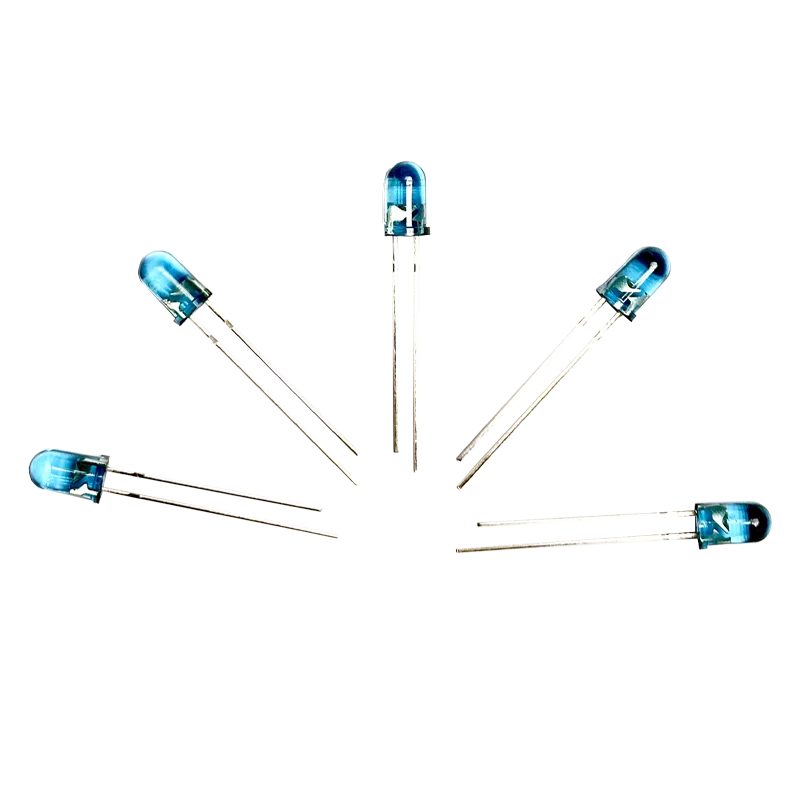

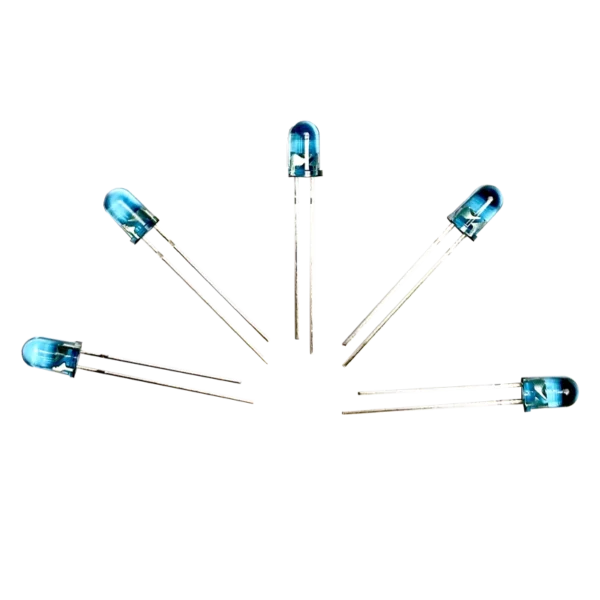

IR LED | IR Transmitter LED 5mm (Pack of 5)

About IR LED

An IR LED 5 mm transmits infrared rays in the range of 760nm wavelength. It is made of gallium arsenide or aluminum gallium arsenide.

Features:-

• Energy-efficient.
• Environmentally friendly.
• Zero maintenance.
• Safety.
• Long-life from 50000hrs to 100000hrs.
• High reliability
• High radiant intensity
• 2.54mm Lead spacing
• Low forward voltage

Applications:-

• IR Touch-Panel
• Industrial equipment
• Suitable to be used in the remote controller
• Suitable to be used in medical treatment appliances
• Suitable to be used in the automated card reader system in freeways.
• Suitable to be used in colored zoom infrared waterproof video cameras.
• Suitable to be used in video cameras that are applied in digital photography, monitoring system, and door phone.
• Suitable to be used in video cameras in the marketplace and crossroads.

Specifications:-

• Continuous forward voltage : 1.4VDC
• Peak forward current : 1A
• Reverse voltage : 5V
• Operating temperature : -40 °C – 85 °C
• Storage temperature : -40 °C – 100 °C
• Soldering temperature : 260 °C
• Power dissipation : 150mW
