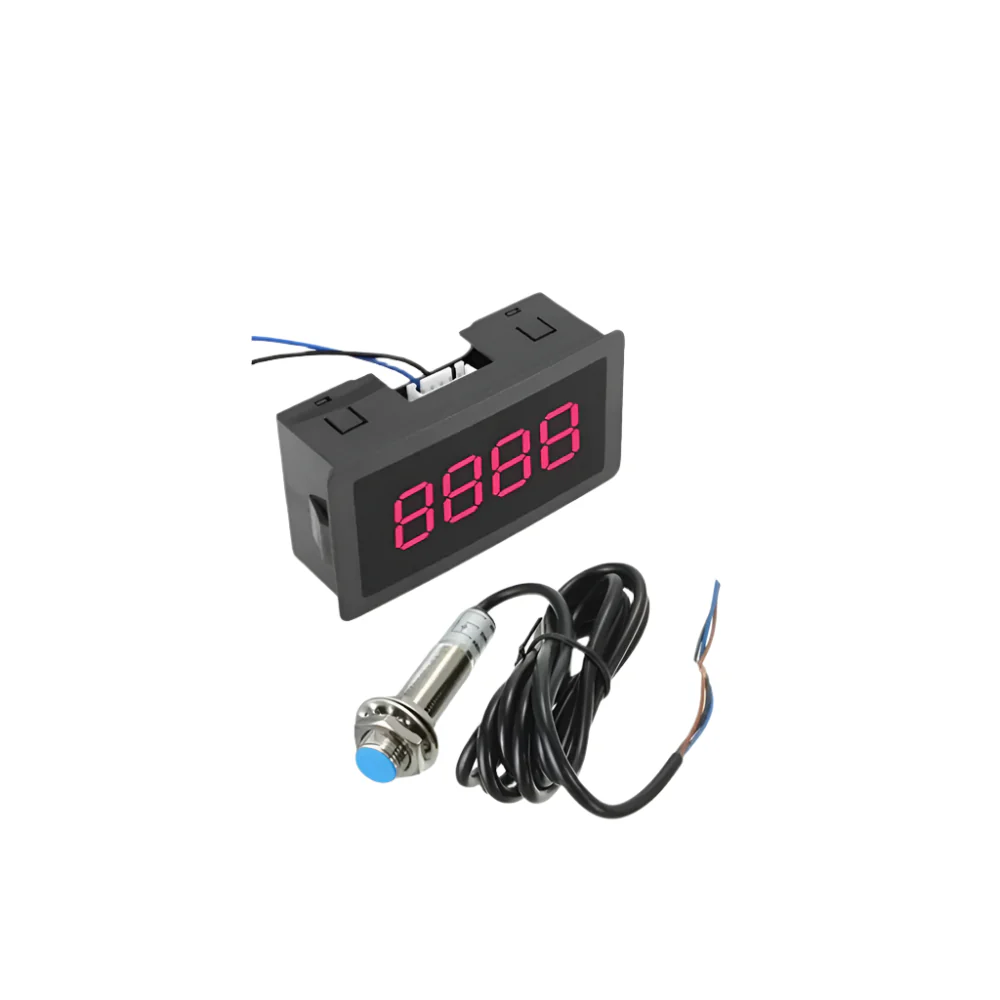

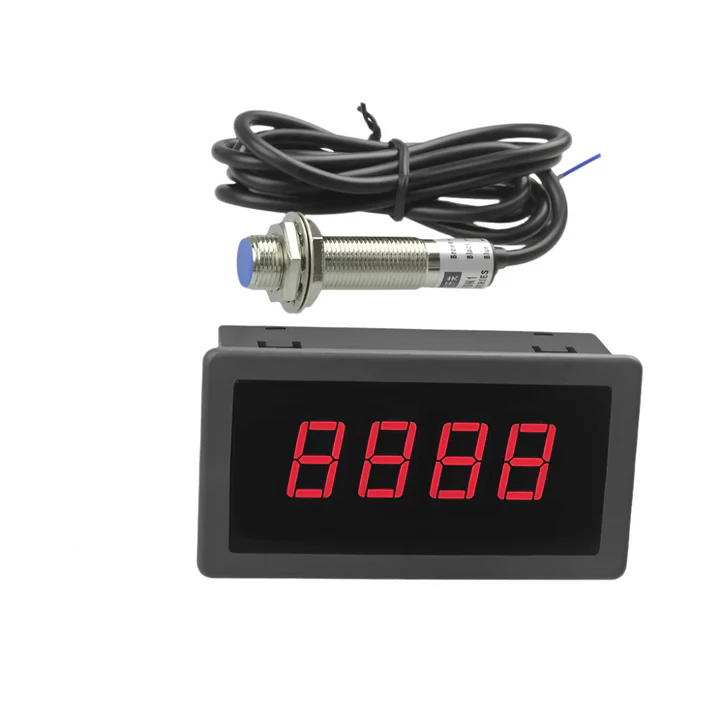

LED 4 Digit Red Display Indicators Tachometer + Hall Proximity Switch Sensor NPN

-11%

LED 4 Digit Red Display Indicators Tachometer + Hall Proximity Switch Sensor NPN

Original price was: ₹1,099.00.Current price is: ₹979.00.

Technical Details

Operating Voltage: 8-24VDC
DC Current: 30mA
Counting Range: 0-9999
Measurement Range: 10-9999 RPM
Input Voltage: Low (-30V to 0.6V), High (4-30V)
Color Options: Blue, Green, Red
Switching Frequency: 320KHz (Hall NPN sensor)
Supply Voltage: 5-24VDC, 6-36VDC (Hall NPN sensor)

Features

4-digit bright LED light, clear to read.
Good stability, high accuracy, and easy installation.
The counting value will be retained when power fails.
Wide application to automation equipment and test equipment, etc.
Compact size, beautiful appearance, and Blue, Green, and Red, are three colors for you to choose from.

Hall NPN sensor

Appearance: M12mm cylinder
Output: NPN three wire normally open type
The detection distance: 10 mm
Supply voltage: 5-24VDC,6-36VDC
Output current: 200 mA
Objects can be detected: permanent magnets
Switching frequency: 320 KHZ
Wiring: brown- +Ve, blue- -Ve, black-signal

Applications :

Motor Speed Measurement – Accurately measures RPM in motors and engines.
Industrial Automation – Monitors rotating machinery in production lines.
Conveyor Belt Systems – Ensures consistent speed control and monitoring.
Fan and Pump Speed Monitoring – Tracks performance in HVAC and water systems.

Physical Attributes

Color(Optional): Blue, Green, Red
Appearance(Hall NPN sensor) : M12mm cylinder

Package Includes

1 x 4 Digital red measurement indicators tachometer
1 x Hall NPN proximity sensor

10 in stock

Category: SENSOR

Description
Reviews (0)

Description

Specification

Description

LED 4 Digit Red Display Indicators Tachometer + Hall Proximity Switch Sensor NPN

This digital display counter has a bright LED light, high accuracy, good stability, and easy installation. The meter remains the number automatically when the power is off. It has A working power supply of AC/DC 8-24V, 40mA. The product has good stability, strong anti-interference, and is ability suitable for the display of various digital instruments.
