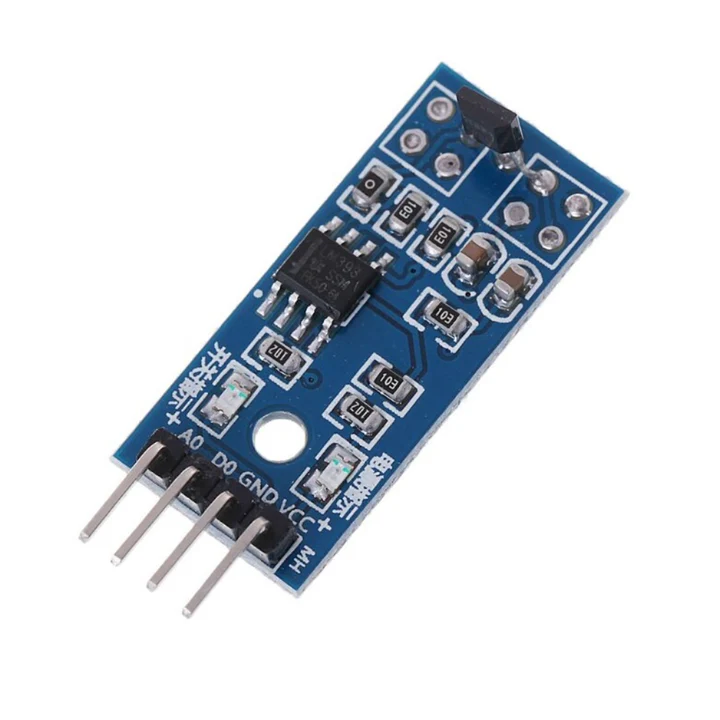

LM393 Linear Hall Effect Sensor Module

Original price was: ₹49.00.Current price is: ₹40.00.

Technical Details

Model Type: Hall Effect Sensor
Model No.: LM393
Operating Voltage: 3.3 ~ 5VDC
Main Chip: LM393
Operating Temperature (°C): -40 to 90
Output Current: 25mA
Power Consumption at Rest: 3mA
Power Consumption when Switched: 8mA

Features

Model Type: 3144 Hall Sensor
Features Wide-Range Voltage Comparator: LM393
Signal Output Indicator
Output Type: Analog / Digital

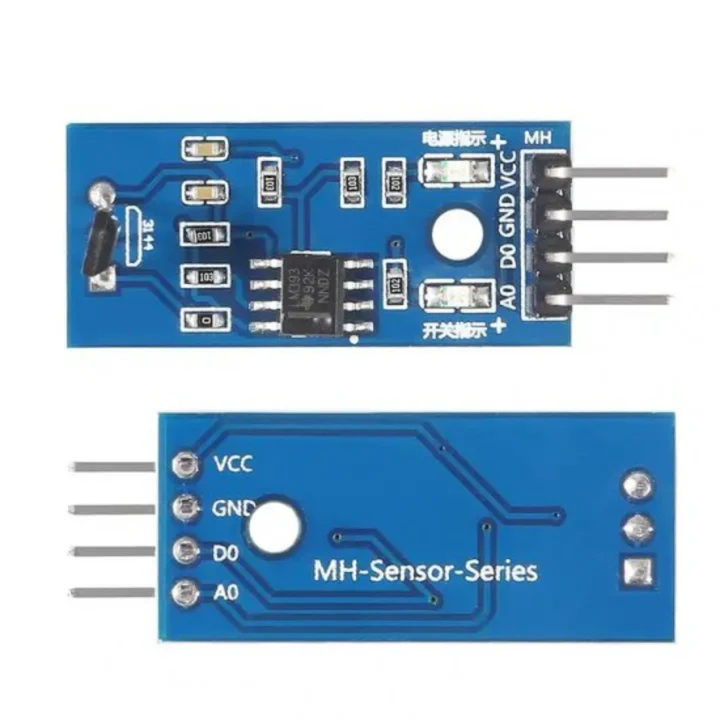

Pin Description:

VCC: 2.3 Volts to 5.3 Volts
GND: Power Supply Ground
AOUT (Analog Sensor Output): Arduino/MCU Input
DOUT (Digital Sensor Output): Arduino/MCU Input

Applications :

Magnetic Field Detection: Proximity sensing, position detection.
Speed Measurement: Tachometers, motors.
Position Sensing: Robotics, linear/rotational motion.
Current Sensing: Power monitoring systems.
Door/Lid Position Detection: Appliances.
Security Systems: Anti-theft alarms.
Electronic Compass: Navigation.
Contactless Switching: Magnetic switches.
Automotive Use: Gear, throttle, crankshaft sensing.
Industrial Automation: Object detection, motor control.
Home Automation: Door/window monitoring.
Gaming/VR: Joysticks, controllers.

10 in stock

Category: SENSOR

Description

Specification

Description

LM393 Linear Hall Effect Sensor Module

LM393 Linear Hall Effect Sensor Module Comparator IC based Linear Hall Effect Sensor Module. This Module comes with 3144 linear hall effect sensor. Using this module you can get digital as well as linear output.

LM393 Linear Hall Effect Sensor Module module can be used to detect the presence of a magnetic field. If there is a magnetic field present, it will report a high-level signal. It can be used in many applications such as RPM sensor (for counting the number of shaft revolutions), Robot speed and distance measurements, door switch and robot arm position sensor. Generally, it can be used for any magnetic field detection.

Additional information

Weight	2 g
Dimensions	40 × 15 × 2 mm
