MAX6675 Module + K Type Thermocouple Sensor Measure Max upto 1024°C Temperature

-17%

MAX6675 Module + K Type Thermocouple Sensor Measure Max upto 1024°C Temperature

Original price was: ₹249.00.Current price is: ₹207.00.

Technical Details

Item Type: Sensor Module
Model Type: Thermocouple Sensor Module
Rated Voltage: 3 to 5.5V
Temp. Measuring Range: 0 to +1024°C
Compensation Range: -20 to +80°C (Cold Junction)
Resolution: 0.25°C

Features

Internal Cold Junction Compensation Circuit
12-bit Digital Temperature Signal Conversion
Embedded Thermocouple Break Detection Circuit
K-type Temperature Probe
Simple SPI Serial Output Temperature
High Impedance Differential Inputs
Thermocouple Break Detection
2000V ESD Protection

Applications :

Temperature Monitoring in Furnaces and Ovens
Precise Temperature Control in Scientific Research
Temperature Measurement for Metal Processing
Used in 3D Printers for Hot-End Temperature Monitoring
Temperature Logging for Heat Treatment Processes
Embedded Systems for Environmental Monitoring
Prototyping for DIY Electronics and Projects

Physical Attributes
- Length × Width × Height(mm) : 32.5 × 16 × 17
- Weight (gm) : 7
Package Includes
- 1 x MAX6675 Module + K Type Thermocouple Sensor Measure Max upto 1024°C Temperature

10 in stock

Category: SENSOR

Description

Specification

Description

MAX6675 Module + K Type Thermocouple Sensor Measure Max up to 1024°C Temperature

This MAX6675 Module + K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for giving an accurate temperature compensated measurement of the supplied K-Type thermocouple sensor.

It has a 12-bit resolution providing temperature readings from 0°C to 1024°C (max temperature of the supplied sensor is 450°C) with a resolution of 0.25°C.

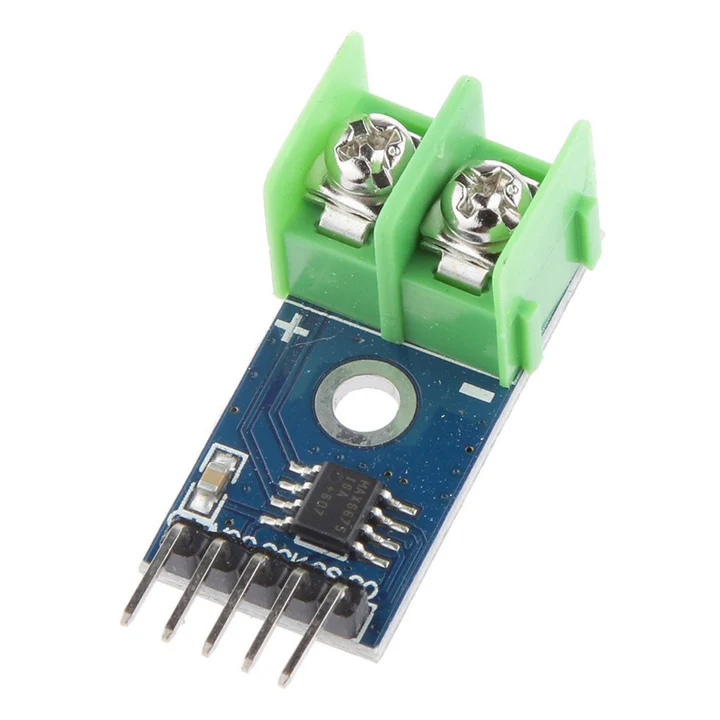

Screw terminals allow for connection to the thermocouples spade connectors and a 5 pin standard 0.1″ header provides an interface to a microcontroller such as an Arduino development board.

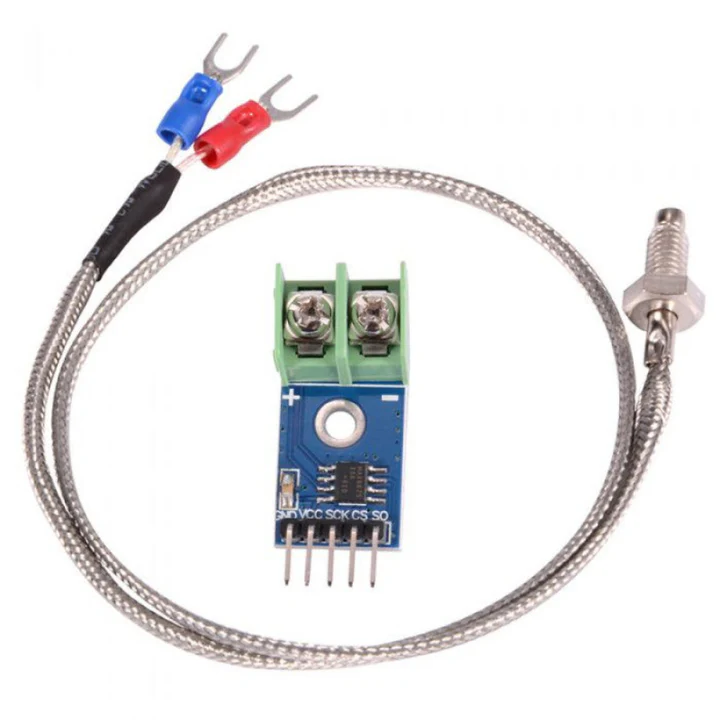

The supplied thermocouple sensor has a diameter of 4.5mm with a 6mm threaded mounting bolt. The total length of the sensor including cable and spade connectors is ~50cm.

Additional information

Weight	7 g
Dimensions	32.5 × 16 × 17 mm
