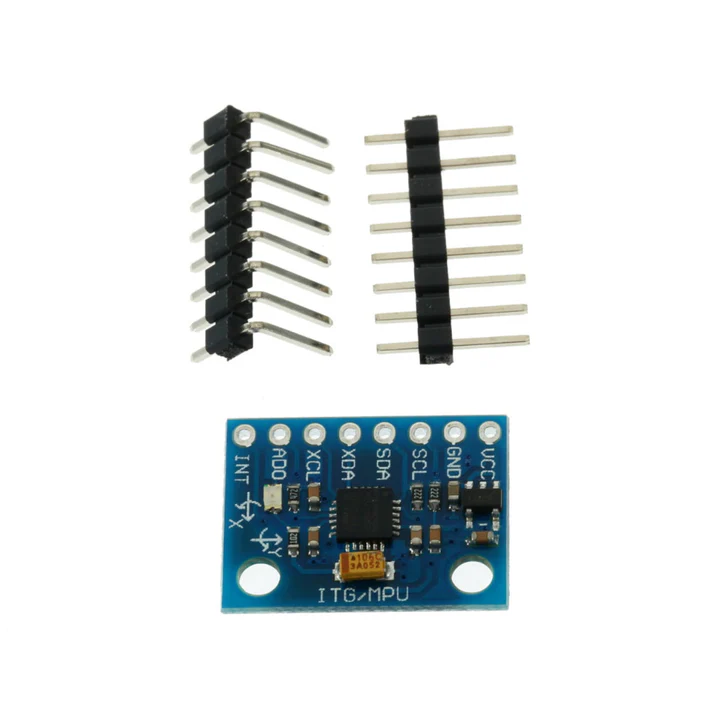

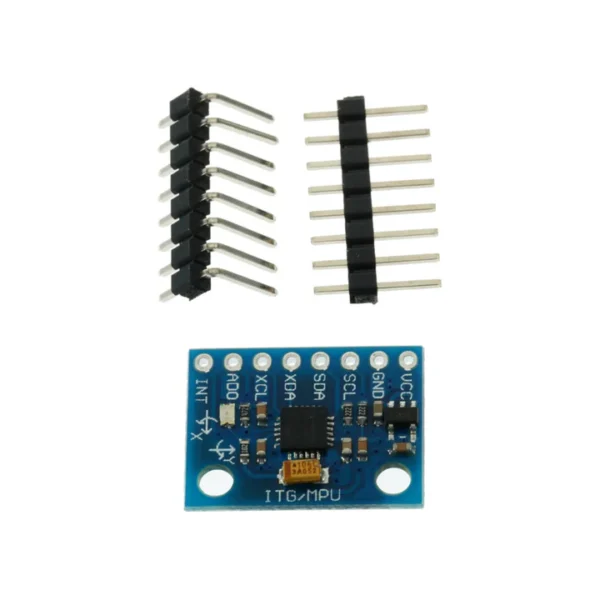

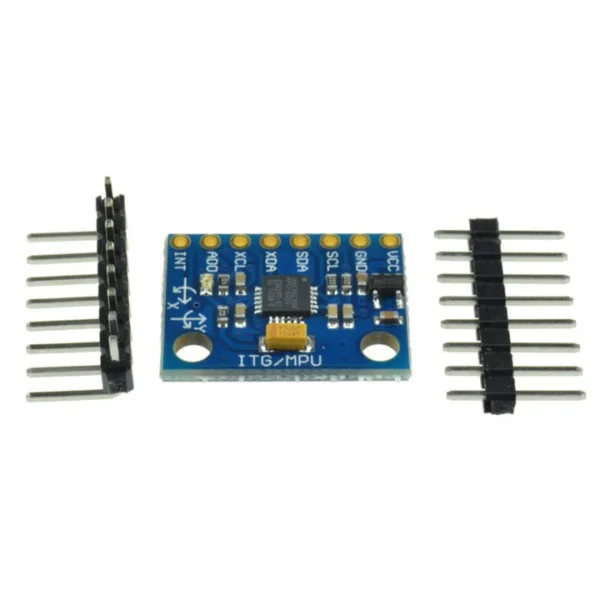

MPU-6050 3-Axis Accelerometer and Gyroscope Sensor

Original price was: ₹249.00.Current price is: ₹179.00.

Technical Details

  • Model: Accelerometer & Gyroscope Sensor
  • Voltage: 3 to 5 VDC
  • Driver IC: MPU-6050
  • Communication: I²C
  • Gyroscope Range: ±250, 500, 1000, 2000°/s
  • Acceleration: ±2, ±4, ±8, ±16g
  • Length: 20mm
  • Width: 16mm
  • Weight (gm) : 2.6

    Features

    • 16-bit AD converter, 16-bit data output
    • I²C output: 6/9-axis MotionFusion (rotation matrix, quaternion, Euler, or raw data)
    • Select solder jumpers for CLK, FSYNC, AD0
    • Digital Motion Processing™ (DMP™) for MotionFusion, timing, and gesture detection
    • Embedded algorithms for bias and compass calibration (no user input)
    • Digital-output temperature sensor
10 in stock
Add to Wishlist
Add to Wishlist
Category:

Description

Specification

Description

MPU-6050 3-Axis Accelerometer and Gyroscope Sensor

The MPU6050 devices combine a 3-axis gyroscope and a 3-axis accelerometer on the same silicon together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis MotionFusion algorithms.

Additional information

Weight 2.6 g
Dimensions 20 × 16 mm
