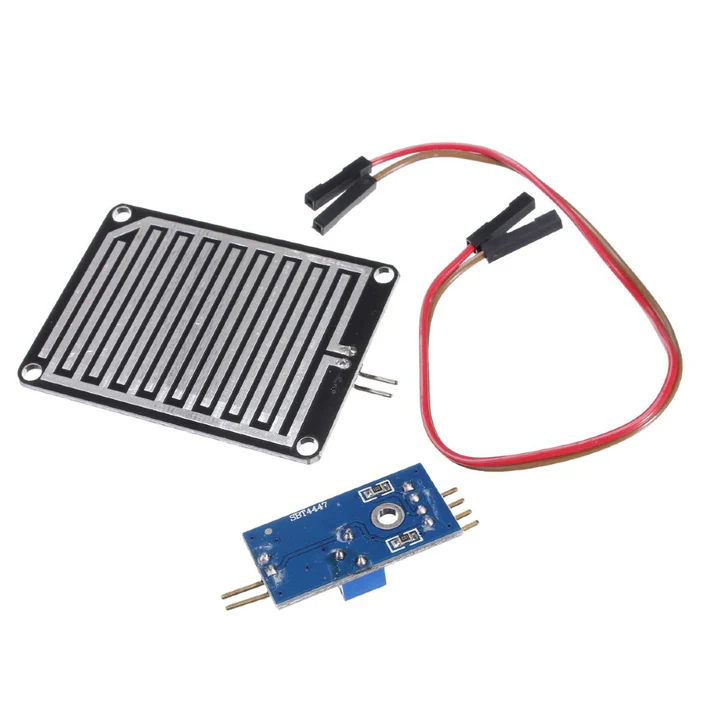

Rain Drop Detection Sensor Module Raindrops Humidity Weather Sensor

-17%

Rain Drop Detection Sensor Module Raindrops Humidity Weather Sensor

Original price was: ₹59.00.Current price is: ₹49.00.

Technical Details

Item Type: Sensor
Model Type: Rain Detection Sensor
Voltage Rating: 3.3V – 5V
Driver Size: 32x15x9mm (LxWxH)
Board Size: 54x40x1.5mm (LxWxH)

Features

LM393 Wide Voltage Comparator
Digital and Analog Output
LED Output Indicator
Compatible with Arduino and TTL
High-Quality FR-04 Double-Sided Material (5.5 x 4.0 cm)
Nickel-Plated Surface for Oxidation Resistance and High Conductivity
Strong Driving Ability: >15mA
Adjustable Sensitivity via Potentiometer
Output: Digital (0/1) and Analog (AO Voltage)
Fixed Bolt Hole for Easy Installation

Pin Description:

VCC: 3.3 Volts to 5 Volts
GND: Power Supply Ground
AOUT (Analog Sensor Output): Arduino/MCU Input
DOUT (Digital Sensor Output): Arduino/MCU Input

Applications :

Weather Monitoring: Detects rainfall for weather stations.
Smart Irrigation Systems: Pauses watering during rain to conserve water.
Automotive Systems: Activates automatic windshield wipers.
Home Automation: Closes windows or covers during rain.
Agriculture: Monitors rain to adjust irrigation schedules.
Disaster Management: Tracks rainfall for flood prediction.
IoT Projects: Integrates with weather-based smart devices.
Outdoor Equipment Protection: Alerts for rain to safeguard sensitive equipment.
Industrial Applications: Monitors rain for outdoor machinery operations.
DIY Electronics: Used in hobby projects for weather sensing.

10 in stock

Category: SENSOR

Description

Specification

Description

Rain Drop Detection Sensor Module Raindrops Humidity Weather Sensor

The Raindrops Detection sensor module is used for rain detection. It is also for measuring rainfall intensity. Rain sensor can be used for all kinds of weather monitoring and translated into output signals and AO.

Raindrops Detection Sensor Module Rain Weather Module for Arduino, etc. Rain sensor can be used to monitor a variety of weather conditions and turned into several fixed output signal and Analog output.

It includes a printed circuit board (control board) that “collects” the raindrops. As raindrops are collected on the circuit board, they create paths of parallel resistance that are measured via the op-amp. The lower the resistance (or the more water), the lower the voltage output. Conversely, the less water, the greater the output voltage on the analog pin. A completely dry board, for example, will cause the module to output 5V.

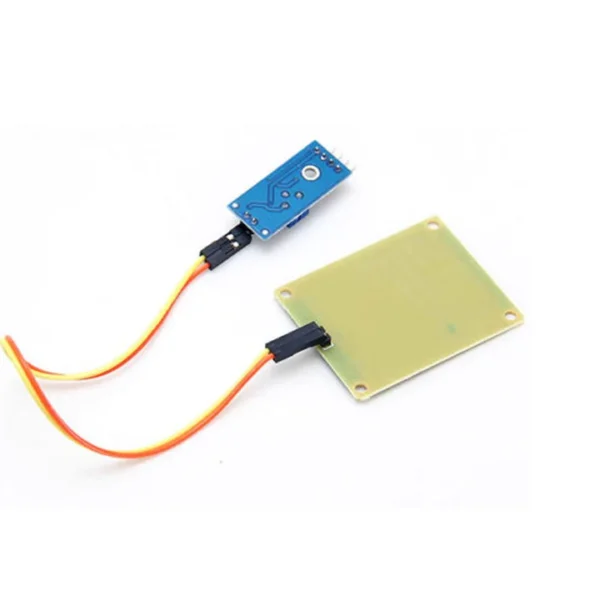

The module includes a rain board and a control board that is separate for more convenience. It has a power indicator LED and an adjustable sensitivity through a potentiometer. The module is based on the LM393 op-amp.

Additional information

Weight	10 g
Dimensions	54 × 40 × 1.5 mm
