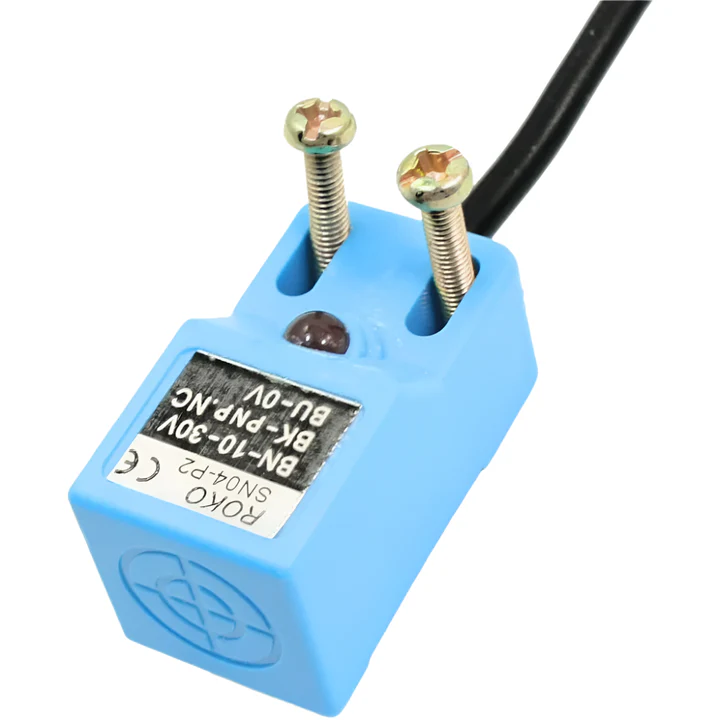

SN04-P2 PNP DC 10-30V, 5mm Distance Detector Proximity Sensor Switch Module (Normally Connect)

-28%

SN04-P2 PNP DC 10-30V, 5mm Distance Detector Proximity Sensor Switch Module (Normally Connect)

Original price was: ₹179.00.Current price is: ₹129.00.

Technical Details

Type: Inductive
Detection distance: 5 mm
Output Type : NO(Normally Connect)
Operating Voltage (VDC): 10 ~ 30
Current Consumption (mA): 5
Cable Length (Meter): 1.5
Material: ABS Plastic
Operating Indicator: Red LED

Features

Red LED checks the state of the proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water, and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
It can replace small switches and limit switches.

Applications :

Industrial Automation – Detects metal objects in conveyor systems and assembly lines.
Robotics – Enables precise positioning and obstacle detection in robotic arms.
CNC Machines & Metalworking – Ensures accurate machining by detecting tool positions.
Security Systems – Used in access control and alarm systems for metal detection.
Automated Doors & Elevators – Triggers automatic doors and safety mechanisms.

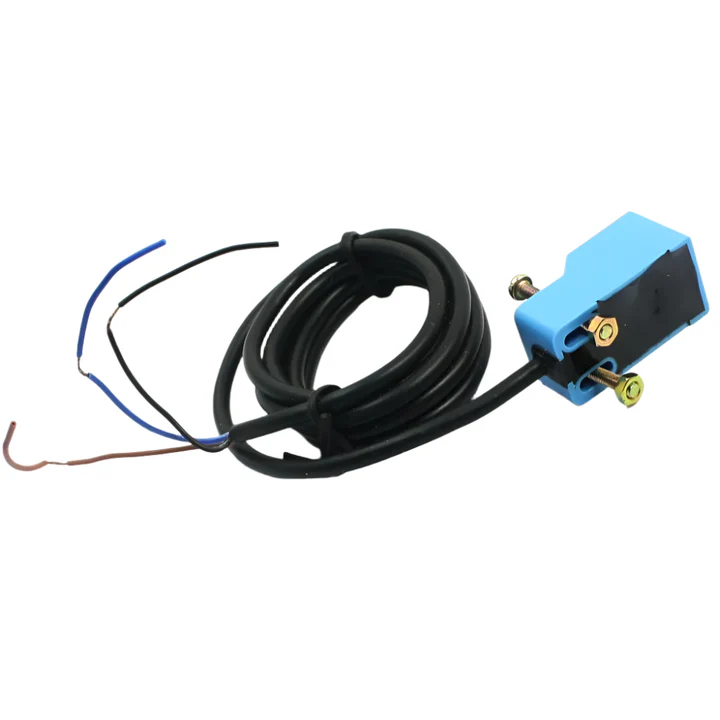

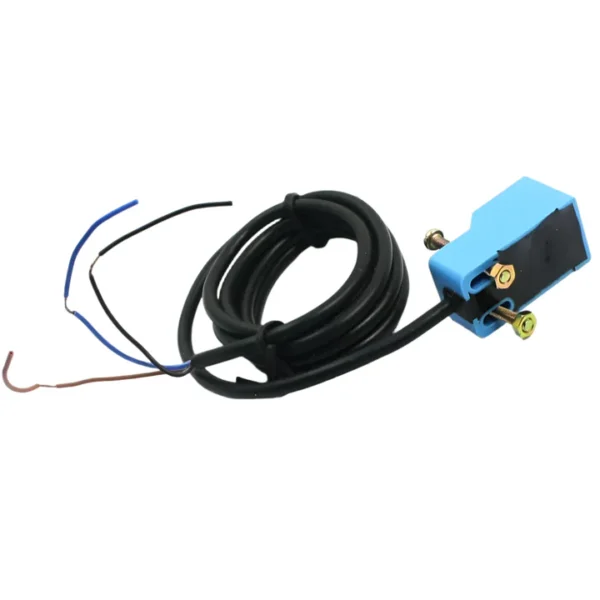

Wire Connections:

Brown wire: 10 ~ 30 VDC (+Ve).
Blue wire: 0 V (GND)
Black wire: signal

Physical Attributes

Cable Length (Meter): 1.5
Weight (gm): 41

Package Includes

1 x SN04-P2 PNP DC 10-30V, 5mm Distance Detector Proximity Sensor Switch Module (Normally Connect)

10 in stock

Category: SENSOR

Description

Specification

Description

SN04-P2 PNP DC 10-30V, 5mm Distance Detector Proximity Sensor Switch Module (Normally Connect)

Introducing the SN04-P PNP DC10-30V Distance Detector Proximity Sensor Switch Module, designed to detect the presence of metallic objects within a 4mm range of its surface. While the detection distance may slightly vary based on the shape, size, and material composition of the metal object, this sensor can also detect thin, non-metallic materials.

Equipped with an LED indicator, this sensor illuminates upon powering up and increases in brightness upon detecting an object. It offers reliable proximity sensing for various applications, ensuring efficient detection and operation in industrial and automation settings.

Additional information

Weight	41 g
Dimensions	1.5 mm
