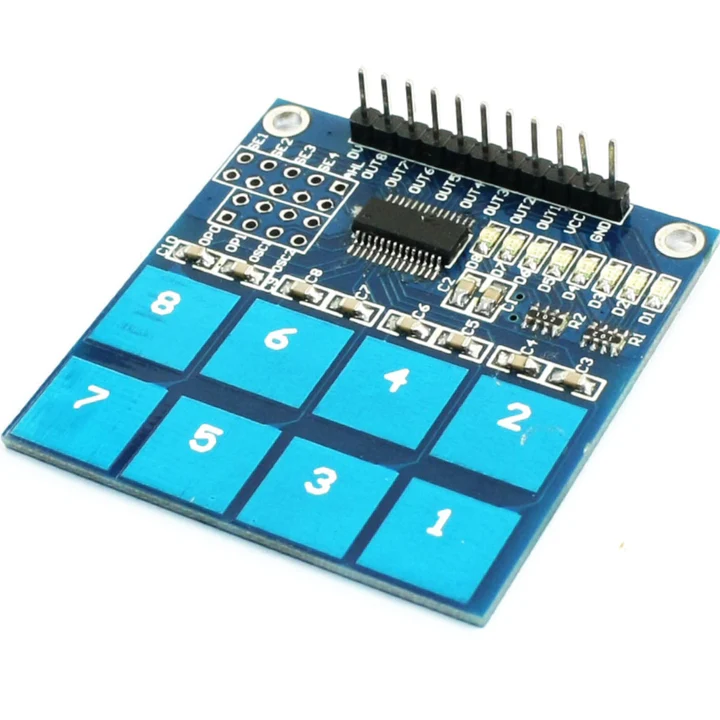

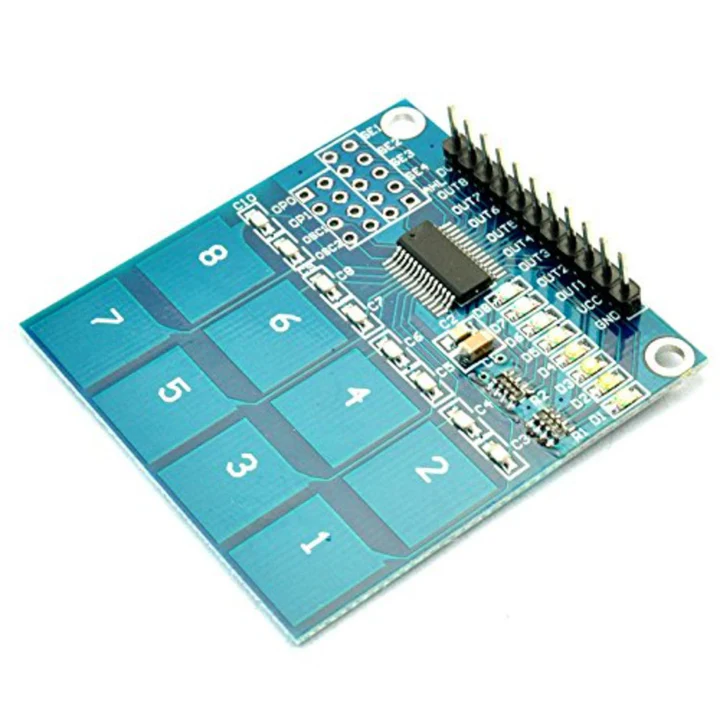

TTP226 8-way Capacitive Touch Switch Module

-9%

TTP226 8-way Capacitive Touch Switch Module

Original price was: ₹119.00.Current price is: ₹108.00.

Technical Details

Item Type: Electronic Switch
Model Type: Touch Switch
Operating Voltage (VDC): 2.4 to 5.5
Sink Current: 8mA
Current (mA): 4mA Output Pin Pull-up
Response Time (μS): 220ms (Low Power Mode), 60ms (High Power Mode)
Length (mm): 46
Width (mm): 47
Height (mm): 11
Weight (g): 7

Features

On-board TTP226 capacitive touch induction IC
On-board 8-way level indicator
Adjustable output mode
Key output mode
Longest time and fast/low power output

Applications :

Touch-sensitive keypads: Ideal for creating custom touch-based user interfaces in consumer electronics, such as home appliances, security systems, or toys.
Smart home automation: Can be used in smart lighting systems, controlling lights or fans via touch without the need for mechanical switches.
Remote controls: Provides a touch-sensitive alternative to traditional buttons for TV remotes or other devices.
Touch-based security systems: Used in access control systems where touch-sensitive panels are part of unlocking or activating mechanisms.

Physical Attributes

Length (mm): 46
Width (mm): 47
Height (mm): 11
Weight (g): 7

Package Includes

1 x TTP226 8-way Capacitive Touch Switch Module

10 in stock

Category: SENSOR

Description

Specification

Description

TTP226 8-way Capacitive Touch Switch Module

The TTP226 is a touchpad detector IC that offers 8 touch keys. The touch detection IC is designed to replace the traditional direct button key with a diverse pad size. Capacitive touch allows electronics to sense when your finger is within a few millimetres of a surface to simulate a button “press” just like how the pushbutton works. Capacitive sensing may be used where low to no force human touch sensing is desirable.

Additional information

Weight	7 g
Dimensions	46 × 47 × 11 mm

Reviews

There are no reviews yet.
