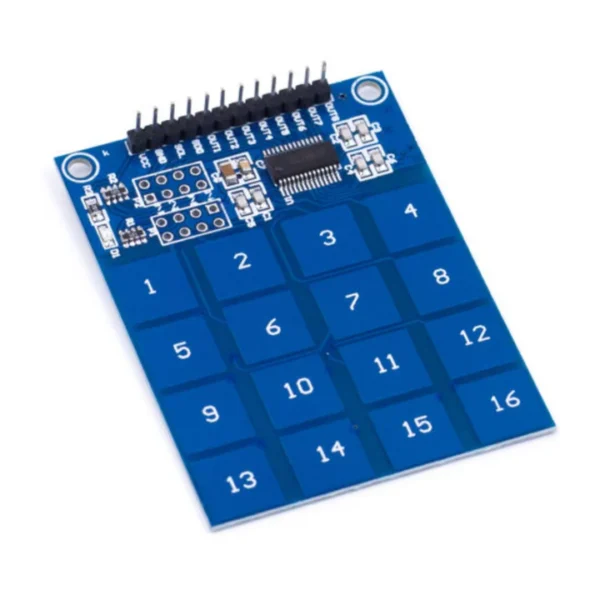

TTP229 16-Way Capacitive Touch Switch Digital keypad Module

-10%

TTP229 16-Way Capacitive Touch Switch Digital keypad Module

Original price was: ₹119.00.Current price is: ₹107.00.

Technical Details

Item Type: Electronic Switch
Model Type: Touch Switch
Operating Voltage (VDC): 2.4 to 5.5
Color: Blue
Length (mm): 65
Width (mm): 50
Height (mm): 1
Weight (g): 10

Features

Built-in regulator
Two modes
Simple 8 key mode with independent 8-channel parallel output.
Advanced 16 Key modes with I2C interface output.
Modes can be selected and configured by the user.
Adjustable sensitivity.

Applications :

Touch-based control systems: Used in home appliances, where users can control devices via touch-sensitive panels instead of mechanical buttons.
Smart home automation: Can be integrated into systems like smart lighting or temperature control, where users can control multiple settings with a single touchpad.
Security systems: Ideal for use in access control systems, allowing for touch-based unlocking or activation.
DIY electronics projects: Common in hobbyist or educational projects for learning about capacitive touch sensing and creating custom touch interfaces.

10 in stock

Category: SENSOR

Description

Specification

Description

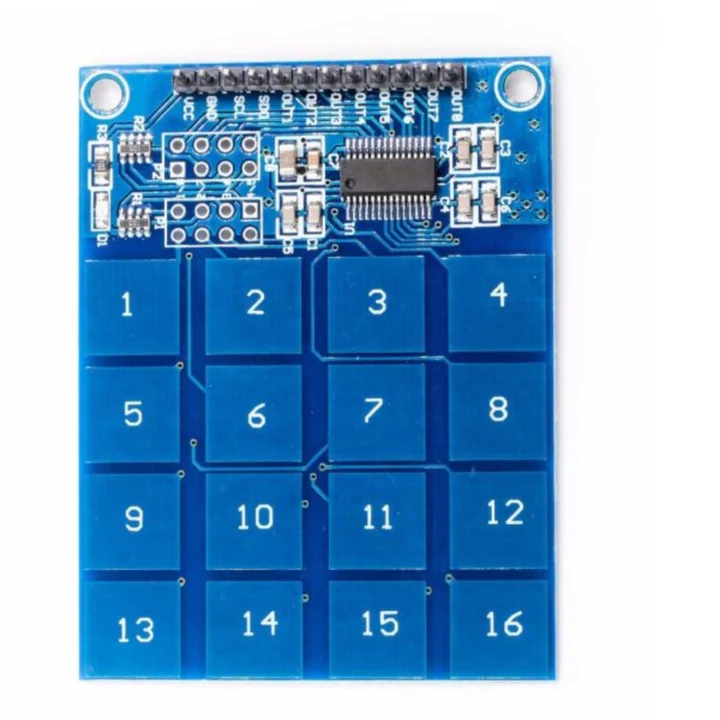

TTP229 16-Way Capacitive Touch Switch Digital keypad Module

This is the TTP229 16-Way Capacitive Touch Switch Digital Touch Sensor Keypad Module.

This capacitive touch sensor module uses the TTP229 integrated circuit, making it easy to add capacitive touch input to your project. It features 16 sensitive touch pads that make an ideal replacement for the old-fashioned keypads.

Capacitive touch allows electronics to sense when your finger is within a few millimeters of a surface to simulate a button “press” just like how the pushbutton works. Capacitive sensing may be used where low to no force human touch sensing is desirable.

This is a 16-switch-based, to use capacitive touch sensing module, This 16-switch digital touch sensor module is based on a touch sensing IV TTP229. This device has a built-in regulator for the touch sensor. We can add interfaces through the non-conductive dielectric material.

Note: HW-136 on board working remains the same.

Additional information

Weight	10 g
Dimensions	65 × 50 × 1 mm
