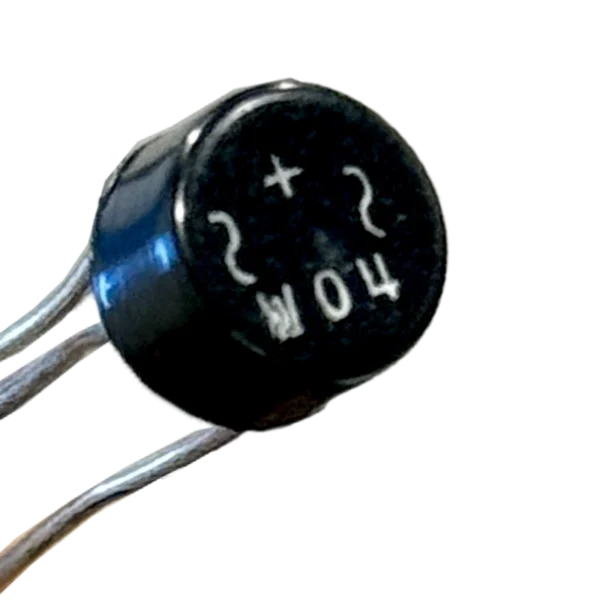

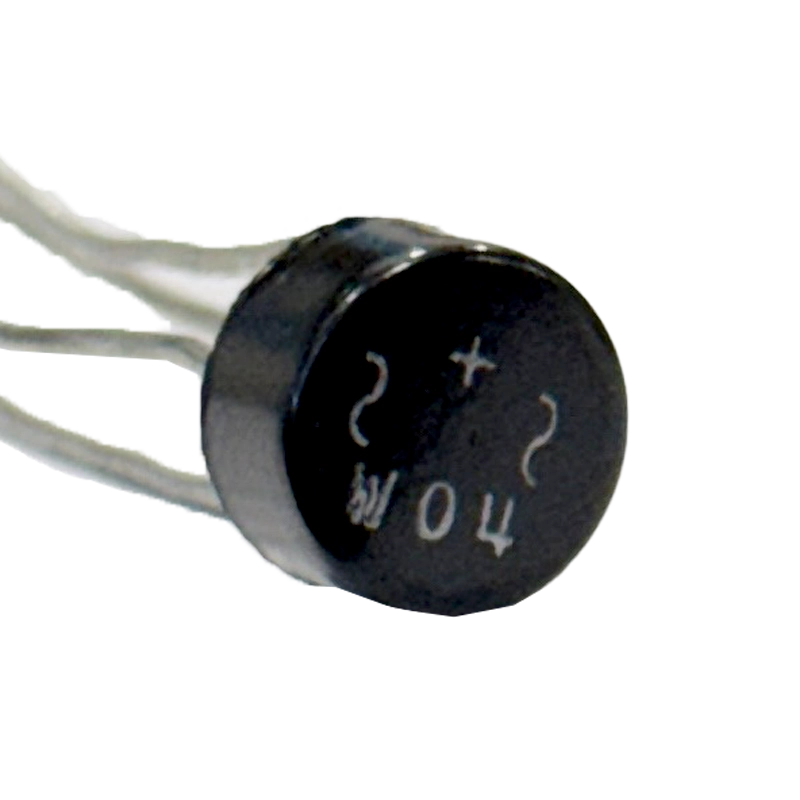

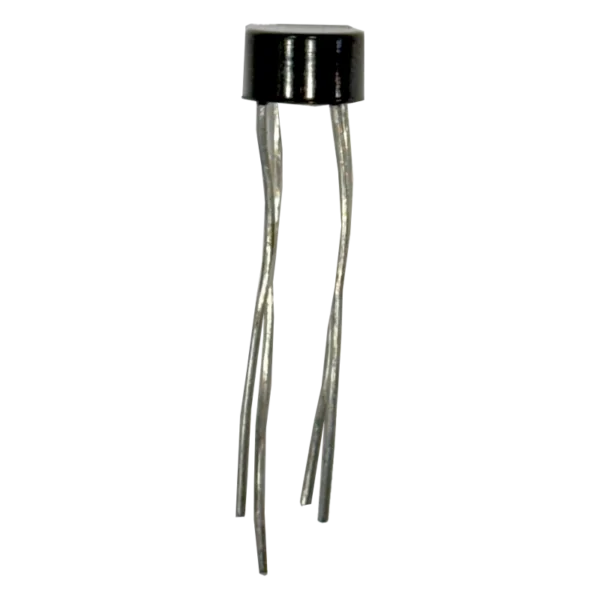

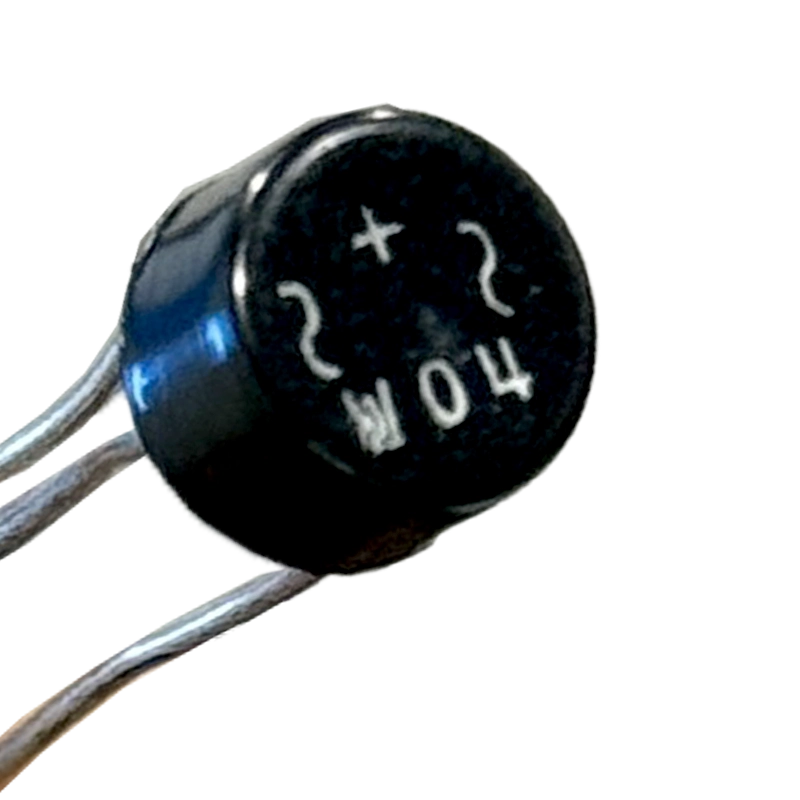

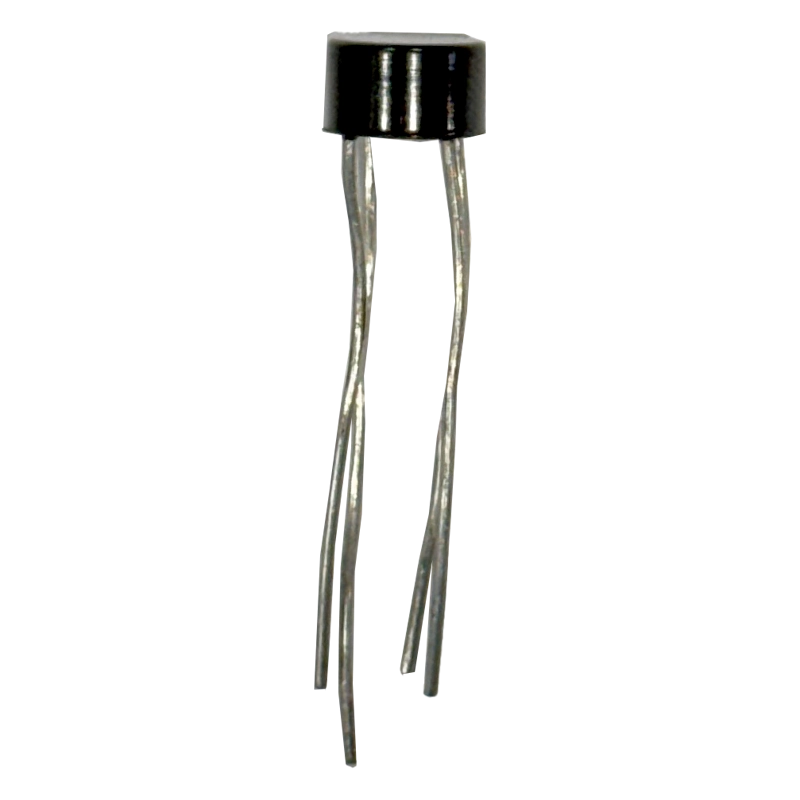

About W04 Bridge RectifierÂ
The W04 Bridge Rectifier is a compact and reliable solution designed for AC-to-DC conversion in a wide range of electronic circuits. Built using glass-passivated silicon technology, it ensures stable performance, improved durability, and low leakage, making it ideal for power supplies, chargers, adapters, and general PCB applications.
Engineered to handle up to 400V reverse voltage and up to 1A continuous current, the W04 offers dependable operation even in demanding environments. Its ability to withstand high surge currents makes it a trusted choice for circuits that experience occasional overloads.
Key Features
- Supports reverse voltages up to 400V
- Handles peak surge currents up to 50A
- Glass-passivated construction for enhanced reliability
- Low forward voltage drop for improved efficiency
- Suitable for PCB mounting and compact power designs
- Ideal for AC input rectification in low-power electronics
Specifications
| Parameter | Value |
|---|---|
| Max. Recurrent Peak Reverse Voltage | 400V |
| Maximum RMS Voltage | 280V |
| Max. DC Blocking Voltage | 400V |
| Max. Instantaneous Forward Voltage | 1V |
| Max. Average Rectified Current | 1.5A |
| Peak Forward Surge Current | 40A |
| Max. DC Reverse Current | 10µA at 25°C |
| Operating Temperature | -55°C to 125°C |
