XH-W1209 W1209 12V Red Digital Temperature Controller Module With Display and NTC Temp Sensor

Original price was: ₹129.00.Current price is: ₹99.00.

Technical Details

Model No.: XH-W1209
Controller Type: Digital temperature controller (thermostat)
Supply Voltage: 12 V DC
Accuracy: ±0.1 °C
Refresh Rate: 0.5 s
Sensor Input: NTC10K (waterproof probe)
Probe Cable Length: 50 cm
Output: 1-channel relay
Relay Contact Rating: 10 A (max)
Length × Width × Height: 48 × 40 × 14 mm
Weight: 19 g

Features

Static current ≤ 35 mA
Operating current ≤ 65 mA
Operating temperature −10 to +60 °C
Operating humidity 20–85% RH

10 in stock

Category: SENSOR

Description

Specification

Description

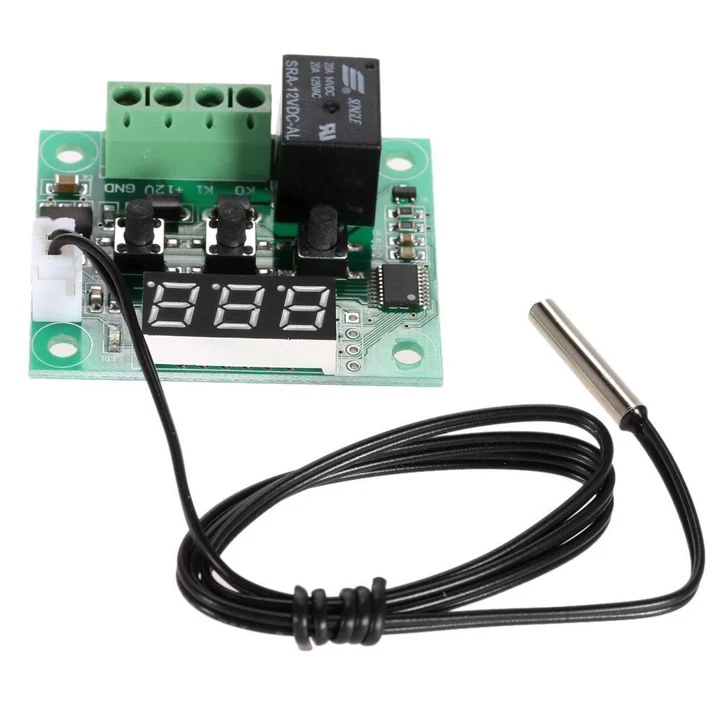

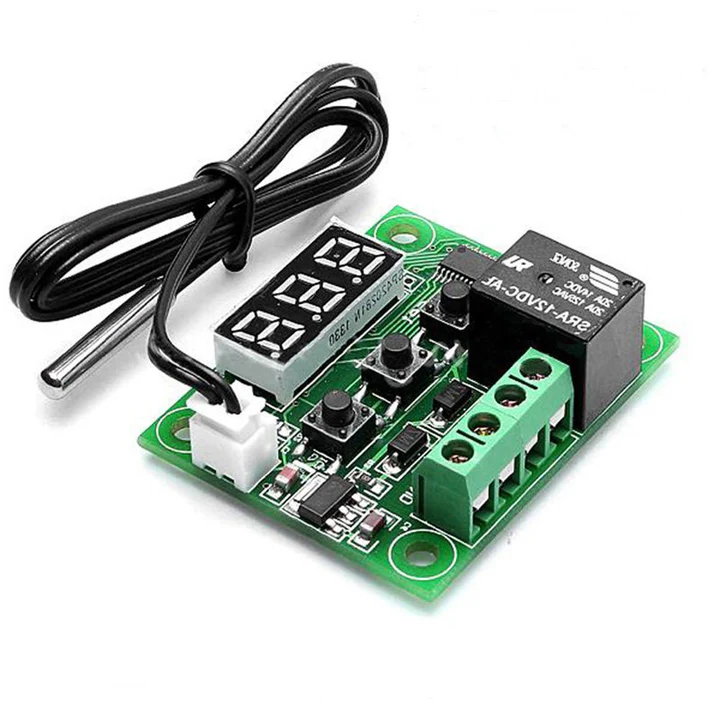

XH-W1209 W1209 12V Red Digital Temperature Controller Module With Display and NTC Temp Sensor

The XH-W1209 12V Digital Temperature Controller is a compact, low-cost thermostat that combines a 3-digit red 7-segment display, a 3-key keypad, and a high-accuracy NTC10K temperature sensor. It lets you configure precise heating/cooling control in 0.1 °C steps and switches loads via an onboard relay.

With the included waterproof NTC probe, the controller drives external devices based on the measured temperature. The screen shows the current temperature by default while an LED indicates the relay status. Front-panel parameters cover mode (heat/cool), hysteresis, upper/lower limits, offset, start delay, and a high-temperature alarm.

Additional information

Weight	19 g
Dimensions	48 × 40 × 14 mm
