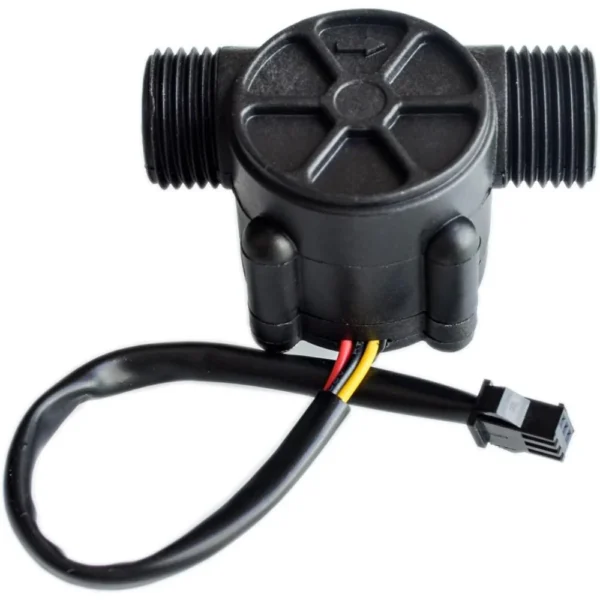

YF-S201 Water Flow Measurement Sensor with 1-30Liter/min Flow Rate

-15%

YF-S201 Water Flow Measurement Sensor with 1-30Liter/min Flow Rate

Original price was: ₹199.00.Current price is: ₹169.00.

Technical Details

Model Type: Water Flow Sensor
Max Water Flow (L/min): 1 to 30
Working Water Pressure (MPa): ≤1.75
Operating Temperature (°C): -25 ~ +80
Operating Humidity: 35% – 80% RH
Accuracy: ±10%
Duty Cycle: 50% ±10% output
Rise Time: 0.04µsec (output)
Pulse: 450 per liter
Output Fall Time (µsec): 0.18
Outer Diameter [OD] (mm): 20
Length (mm): 62.5
Width (mm): 36
Height (mm): 35
Weight (g): 50

Features

The simple and compact module.
Easy to install.
High sealing performance.
High-quality Hall effect sensor.

Connection

Red wire: +5V
Black wire: GND
Yellow wire: PWM output

Applications :

Water Flow Monitoring in Plumbing Systems: Monitors water flow rate to detect leaks or irregularities in residential and industrial plumbing systems.
Aquarium Systems: Used to measure water flow in aquariums, ensuring proper circulation for aquatic life.
Agriculture & Irrigation Systems: Monitors water usage in irrigation systems, helping optimize water consumption and prevent wastage.
Water Treatment Plants: Measures water flow in treatment plants to ensure consistent operation and monitor filtration processes.
Water Conservation Systems: Used in systems designed to conserve water, helping to track usage and optimize water distribution.

10 in stock

Category: SENSOR

Description

Specification

Description

YF-S201 Water Flow Measurement Sensor with 1-30Liter/min Flow Rate

This is YF-S201 Water Flow Measurement Sensor with 1-30Liter/min Flow Rate – Black. This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There’s an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.

By counting the pulses from the output of the sensor, you can easily calculate water flow. Each pulse is approximately 2.25 millilitres.

Note: this isn’t a precision sensor, and the pulse rate does vary a bit depending on the flow rate, fluid pressure, and sensor orientation. It will need careful calibration if better than 10% precision is required. However, it’s great for basic measurement tasks!

Additional information

Weight	50 g
Dimensions	65.5 × 36 × 35 mm
