Description

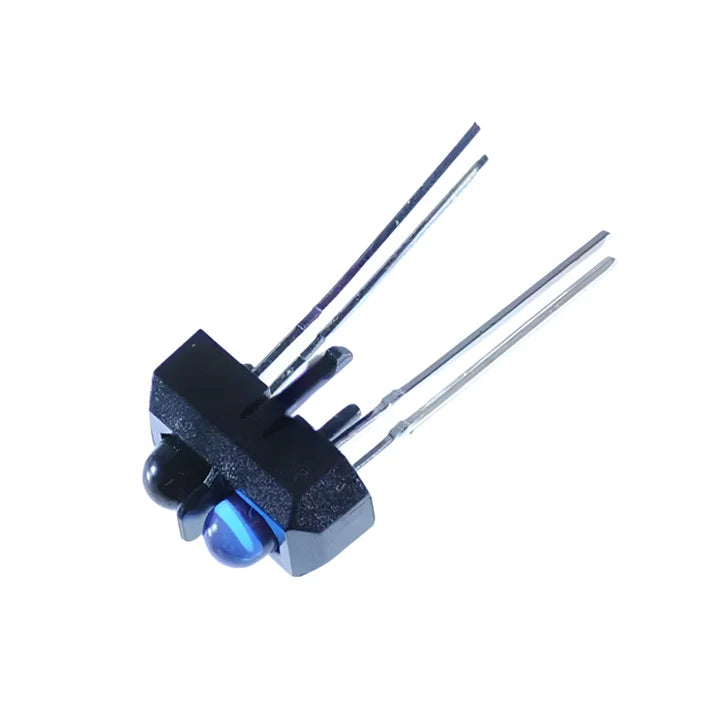

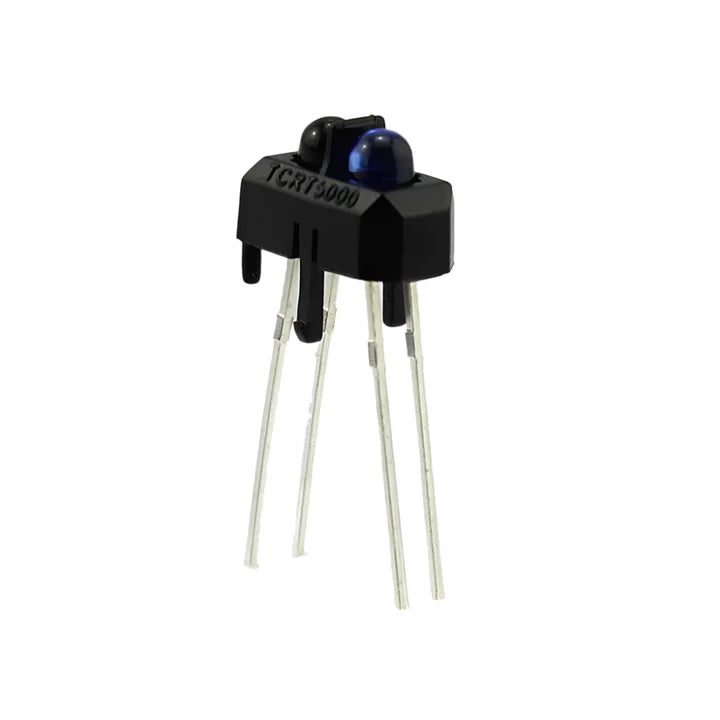

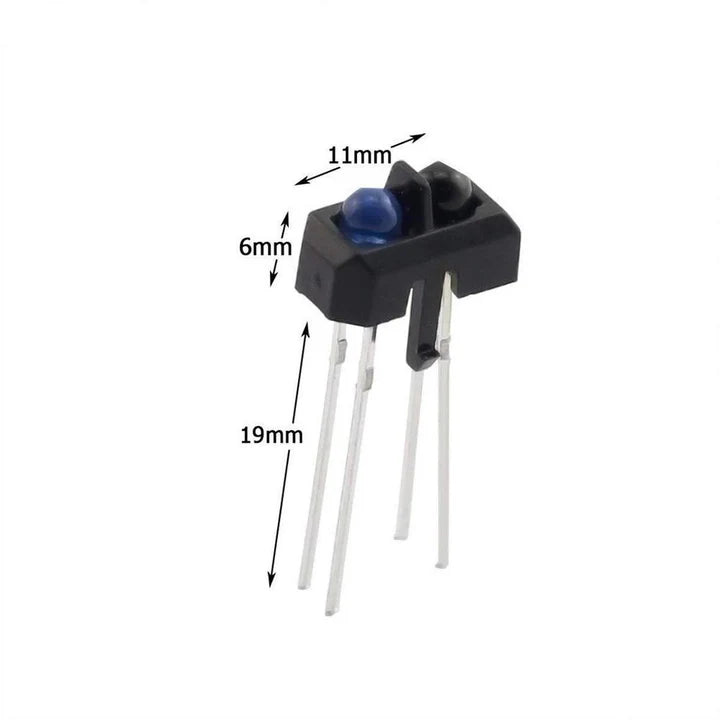

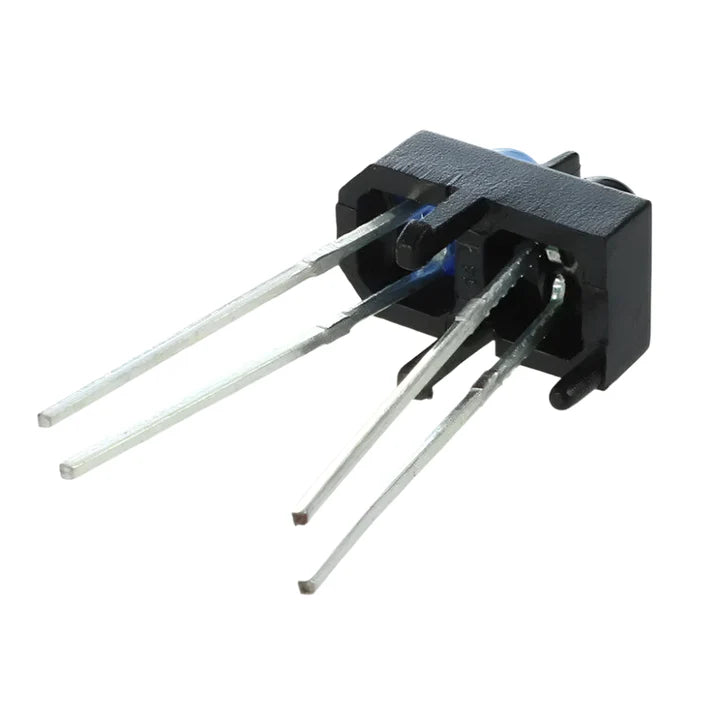

TCRT5000 Reflective IR sensor photoelectric switch
The TCRT5000 Reflective IR sensor photoelectric switch is perfect for line tracking robot car like DIY projects. TCRT5000 is a reflective sensor which includes an infrared emitter and phototransistor in a leaded package which blocks visible light.These are the set of replacement IR LED including both emitter and receiver for our Line Sensor Modules.
Technical Details
- Item Type: Switch
- Model Type: Photoelectric Switch
- Model No.: TCRT5000
- Operating Voltage (V): 3.6 to 5
- Avg. Current Used (mA): 60
- Distance Measure (cm): 1.5
- Output Type: Phototransistor
- Weight (g): 8
- Operating Temperature (°C): -25 to 85
- Color: Black + Blue
- Material: Plastic + Iron
- Detecting Method: Reflective
- Additional Specs: Collector Current: 100mA, Collector-Emitter Voltage: 70V, Forward Current: 60mA
Features
- Detecting Method: Reflective
- Additional Specs: Collector Current: 100mA, Collector-Emitter Voltage: 70V, Forward Current: 60mA
- Compact construction
- Senses the presence of an object using the reflective IR beam from the object
Application:
- Object Detection: Used in robotics and automation to detect objects or obstacles.
- Line Following Robots: Helps in line-tracking systems for autonomous robots.
- Position Sensing: Measures the position of a moving part in industrial applications.
- Counting Systems: Counts objects passing through a sensor, used in production lines.
- Speed Measurement: Used in tachometers for measuring the speed of rotating objects.
- Proximity Sensing: Detects the presence of objects in close range, commonly used in industrial systems.
- Encoder Systems: Used in rotary encoders for determining rotational position or motion.
- Automation Control: Provides feedback for automated control systems in manufacturing.
Pinout Diagram
Integration with Arduino
Sample Code
| int a,b,c; |
| void setup() { |
| Serial.begin(9600); |
| pinMode(6,OUTPUT); |
| } |
| void loop() { |
| digitalWrite(6,HIGH); // Turning ON LED |
| delayMicroseconds(500); //wait |
| a=analogRead(A3); //take reading from photodiode(pin A3) :noise+signal |
| digitalWrite(6,LOW); //turn Off LED |
| delayMicroseconds(500); //wait |
| b=analogRead(A3); // again take reading from photodiode :noise |
| c=a-b; //taking differnce:[ (noise+signal)-(noise)] just signal |
| //Serial.print(a); //noise+signal |
| //Serial.print("\t"); |
| //Serial.print(b); //noise |
| //Serial.print("\t"); |
| Serial.println(c); // denoised signal |
|
} //Credits = https://create.arduino.cc/ Physical Attributes
