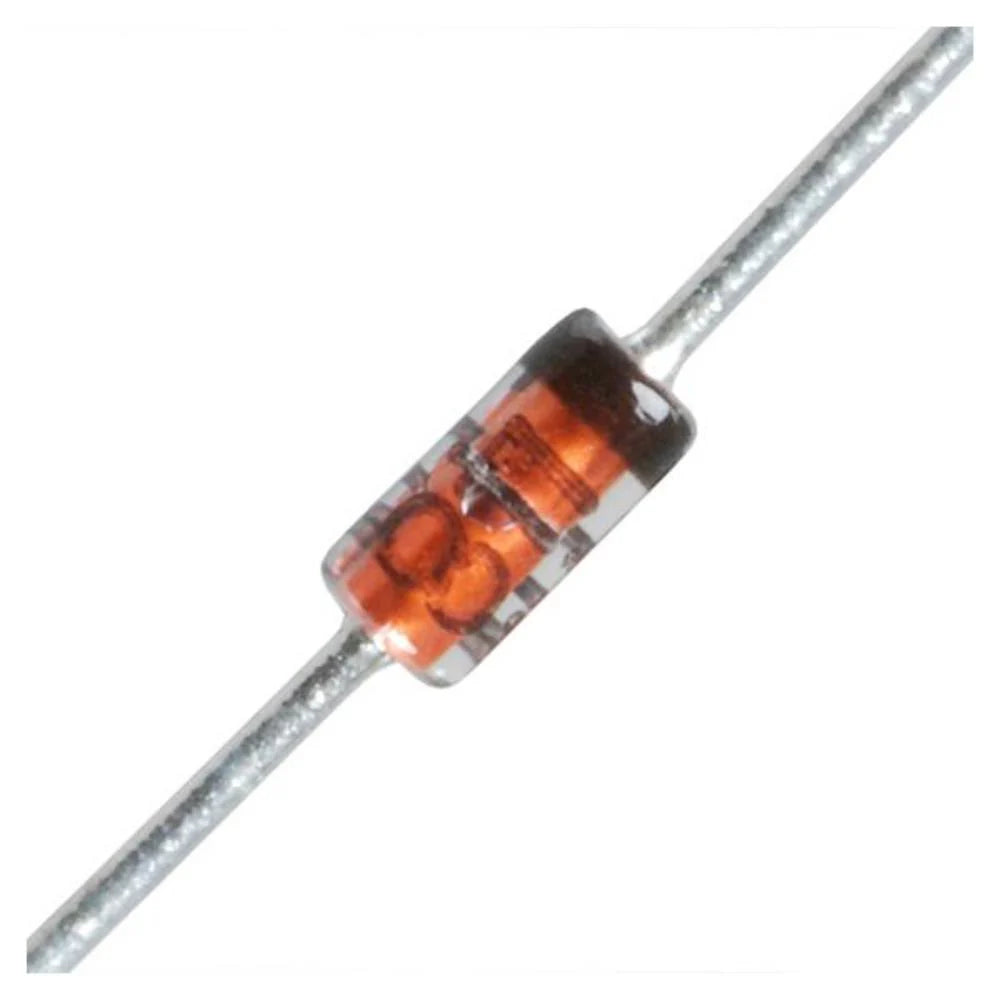

1N4744A (15V 1 Watt Zenner Diode)
Rs. 2.00
Sale price
Rs. 2.00
Regular price
Skip to product information
Power Dissipation: This diode is capable of dissipating up to 1 watts of power, making it suitable for various medium power applications.
Tolerance: The typical tolerance of the 1N4744A Zener voltage is ±5%, ensuring precise voltage regulation.
Package: It is available in a DO-41 (axial leaded) package, which is easy to mount on printed circuit boards (PCBs).
Temperature Stability: The 1N4744A offers good stability over a wide temperature range, which is crucial for maintaining consistent performance in varying environmental conditions.
Low Leakage Current: It has a low leakage current in the reverse bias condition, which helps in reducing power losses.
Protection Circuits: It is used in over-voltage protection circuits to protect sensitive electronic components by clamping the voltage to a safe level.
1N4744A (15V 1 Watt Zenner Diode)
Rs. 2.00
Sale price
Rs. 2.00
Regular price
Description
The 1N4744A is a 15V Zener diode, which is commonly used in electronic circuits for voltage regulation and reference. The 1N4744A is part of the 1N47xx series, known for their reliability and precision.
Features :
Voltage Rating: The 1N4744A has a Zener voltage of 15V, meaning it maintains a steady 15V across its terminals when the reverse breakdown voltage is reached.Power Dissipation: This diode is capable of dissipating up to 1 watts of power, making it suitable for various medium power applications.
Tolerance: The typical tolerance of the 1N4744A Zener voltage is ±5%, ensuring precise voltage regulation.
Package: It is available in a DO-41 (axial leaded) package, which is easy to mount on printed circuit boards (PCBs).
Temperature Stability: The 1N4744A offers good stability over a wide temperature range, which is crucial for maintaining consistent performance in varying environmental conditions.
Low Leakage Current: It has a low leakage current in the reverse bias condition, which helps in reducing power losses.
Applications:
Voltage Regulation: One of the primary applications of the 1N4744A is to provide a stable reference voltage in power supplies, ensuring consistent output voltage regardless of variations in input voltage or load conditions.Protection Circuits: It is used in over-voltage protection circuits to protect sensitive electronic components by clamping the voltage to a safe level.
Technical Details
- Manufacturer Part No: 1N4744A
- Product Type: Zener Diodes
- Zener Voltage: 15 V
- Forward Voltage: 1.1 V
- Test Current: 20 mA
- Power Dissipation: 1 Watt
- Voltage Tolerance: ±5%
- Zener Impedance: 10 Ohms
- Configuration: Single
- Voltage Temperature Coefficient: 0.068 %/°C Minimum Operating Temperature: – 65°C Maximum Operating Temperature: + 200°C
- Mounting Style: Through Hole
- Package/Case: DO-7
