Description
The 2N2222 is a widely used NPN bipolar junction transistor (BJT) known for its reliability and versatility in various electronic circuits. It is designed for general-purpose switching and amplification applications. The 2N2222 offers high-speed switching capabilities and is suitable for low- to medium-power applications.
Features:
High Voltage Rating: Handles up to 75V Collector-Base voltage and 40V Collector-Emitter voltage, suitable for a range of electronic circuits.High Current Capability: Supports up to 600mA of Collector Current, making it ideal for moderate power applications.
Wide Temperature Range: Operates effectively in extreme temperatures from -55°C to +150°C, ensuring reliability in various environments.
Compact Package: This comes in a TO-92 package, making it easy to integrate into small and dense circuit designs.
Fast Switching Speed: Provides high-speed switching performance, beneficial for dynamic electronic applications.
Applications:
Switching Circuits: Ideal for use in low- to medium-power switching applications where fast and reliable switching is required.Signal Amplification: Suitable for signal amplification in audio and RF circuits, taking advantage of its high gain and frequency response.
Oscillator Circuits: Can be used in oscillator circuits for generating various frequencies.
Amplifiers: Commonly used in small signal amplifiers in audio and communication systems.
Consumer Electronics: Applicable in a wide range of consumer electronic devices where compact and efficient transistor performance is needed.
Technical Details
- Type: NPN Bipolar Junction Transistor (BJT)
- Collector-Base Voltage (Vcb): 75V
- Collector-Emitter Voltage (Vce): 40V
- Emitter-Base Voltage (Veb): 6V
- Collector Current (DC): 600mA
- Junction Temperature: -55°C to +150°C
- Storage Temperature: -55°C to +150°C

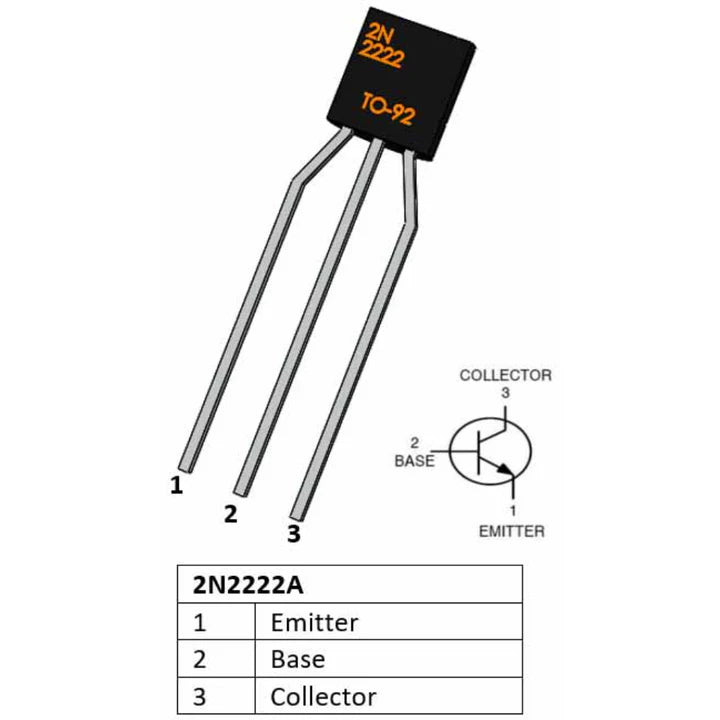

- Package Type: TO-92
Physical Attributes
- L x W x H (mm): 4.5 x 3.5 x 19
Package Includes
- 1 x 2N2222 NPN Transistors
