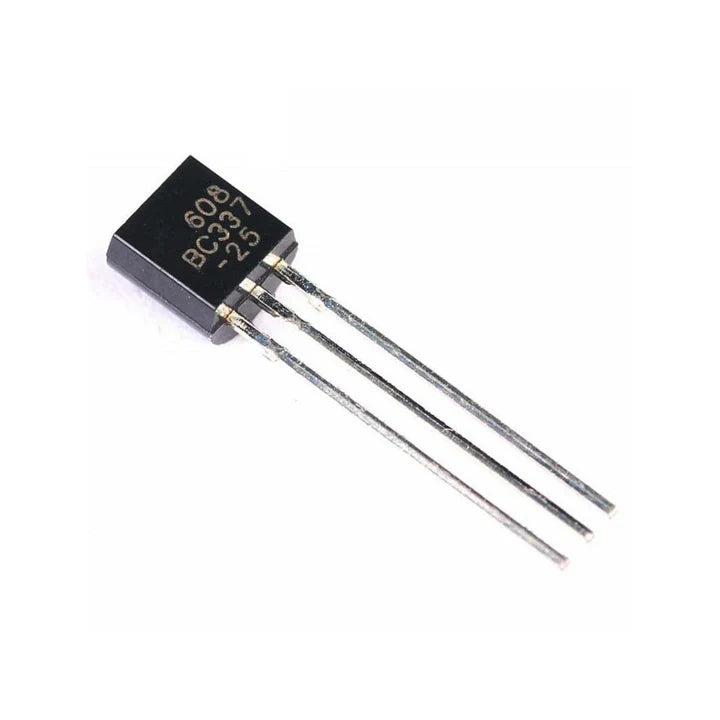

BC337 NPN Transistor
Rs. 9.00
Sale price
Rs. 9.00
Regular price
Skip to product information
Polarity: The arrow in the transistor symbol points outward for NPN transistors.
Maximum Collector Current (IC): The BC337 can typically handle a continuous collector current of around 800 mA.
Maximum Collector-Emitter Voltage (VCE): The maximum voltage that can be applied across the collector and emitter is typically around 45 V.
Maximum Power Dissipation (Ptot): The BC337 can typically dissipate up to 625 mW without damage.
BC337 NPN Transistor
Rs. 9.00
Sale price
Rs. 9.00
Regular price
Description
The BC337 is a widely used NPN (Negative-Positive-Negative) bipolar junction transistor (BJT) known for its general-purpose amplification and switching capabilities in electronic circuits.
Here is a description of the BC337 NPN transistor:
Type: NPN (Negative-Positive-Negative) transistor.Polarity: The arrow in the transistor symbol points outward for NPN transistors.
Maximum Collector Current (IC): The BC337 can typically handle a continuous collector current of around 800 mA.
Maximum Collector-Emitter Voltage (VCE): The maximum voltage that can be applied across the collector and emitter is typically around 45 V.
Maximum Power Dissipation (Ptot): The BC337 can typically dissipate up to 625 mW without damage.
Applications:

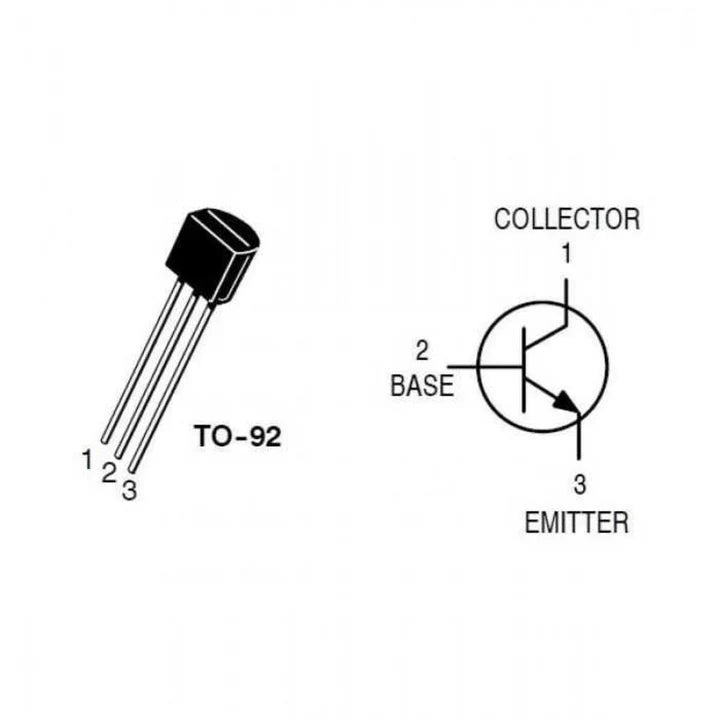

The BC337 is commonly used in small-signal amplification circuits. It is suitable for switching applications in electronic circuits. Due to its small size and low power requirements, it is often used in low-power electronic devices.Pin Configuration
- Collector (C): It is the power supply input for the transistor.
- Base (B): It controls the current between the emitter and collector.
- Emitter (E): It is the output or common connection.
Technical Details
- Package Type: TO-92
- Transistor Type: PNP
- Max Collector Current: -800mA
- Max Collector-Emitter Voltage: -45V
- Max Collector-Base Voltage: -50V
- Max Emitter-Base Voltage: -5V
- Max Collector Dissipation: 625 Milliwatt
- Max Transition Frequency: 100 MHz
Applications
- Low-power audio amplifiers
- Small signal amplifiers
- Audio frequency Driver
- Amplifier Output Stage
- General purpose switching
