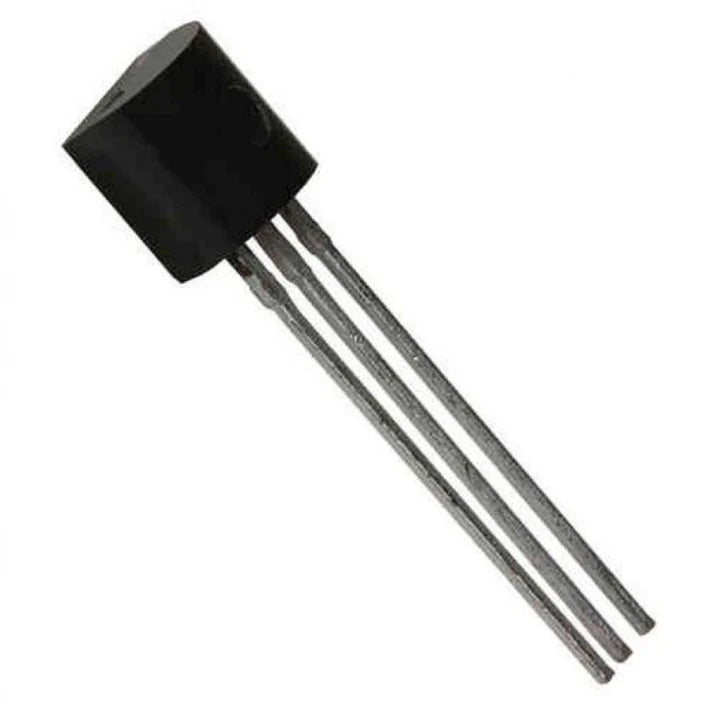

BC547 NPN Transistor
Rs. 2.00
Sale price
Rs. 2.00
Regular price
Skip to product information
Polarity: The arrow in the transistor symbol points outward for NPN transistors.
Maximum Collector Current (IC): The BC547 can typically handle a continuous collector current of around 100 mA.
Maximum Collector-Emitter Voltage (VCE): The maximum voltage that can be applied across the collector and emitter is typically around 45 V.
Maximum Power Dissipation (Ptot): The BC547 can typically dissipate up to 500 mW without damage.

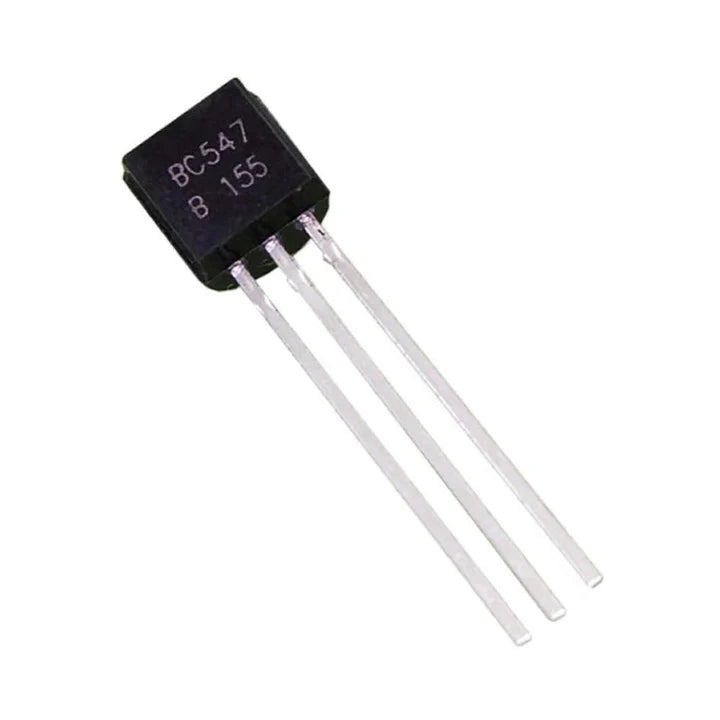

BC547 NPN Transistor
Rs. 2.00
Sale price
Rs. 2.00
Regular price
Description
The BC547 is a widely used NPN bipolar junction transistor (BJT) with specific characteristics that make it suitable for various small-signal amplification and switching applications in electronic circuits.
Here is a description of the BC547 NPN transistor:
Type: NPN (Negative-Positive-Negative) transistor.Polarity: The arrow in the transistor symbol points outward for NPN transistors.
Maximum Collector Current (IC): The BC547 can typically handle a continuous collector current of around 100 mA.
Maximum Collector-Emitter Voltage (VCE): The maximum voltage that can be applied across the collector and emitter is typically around 45 V.
Maximum Power Dissipation (Ptot): The BC547 can typically dissipate up to 500 mW without damage.
Applications:
The BC547 is commonly used in small-signal amplification circuits. It is suitable for switching applications in electronic circuits. Due to its small size and low power requirements, it is often used in low-power electronic devices.Pin Configuration

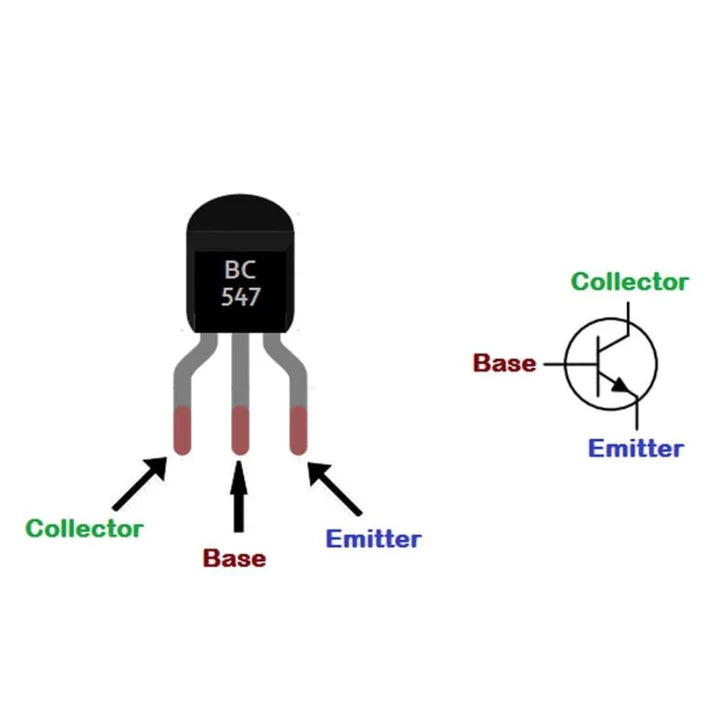

- Collector (C): It is the power supply input for the transistor.
- Base (B): It controls the current between the collector and emitter.
- Emitter (E): It is the ground or common connection.
Technical Details
- Collector-Base Voltage (Vcb) (V):50
- Collector-Emitter Voltage (Vce) (V):45
- Emitter-Base Voltage (Veb) (V):6
- Collector Current (DC) (A):100m
- Junction Temperature (°C):150
- Storage condition (℃):-65 to 150
Physical Attributes
- L x W x H (mm): 4.5 x 3.5 x 19
- Weight (g):1
